R E D U C E R       N A M E P L A T E       D A T A
MANUFACTURER      SM-CYCLO Our ID No.      006037
MODEL:      CHHMS10-6190C-59 RATIO      59
HP      10 SERVICE FACTOR
INPUT SPEED       OUTPUT SPEED      29.7
S/N      C4036874 Torque       lb-in

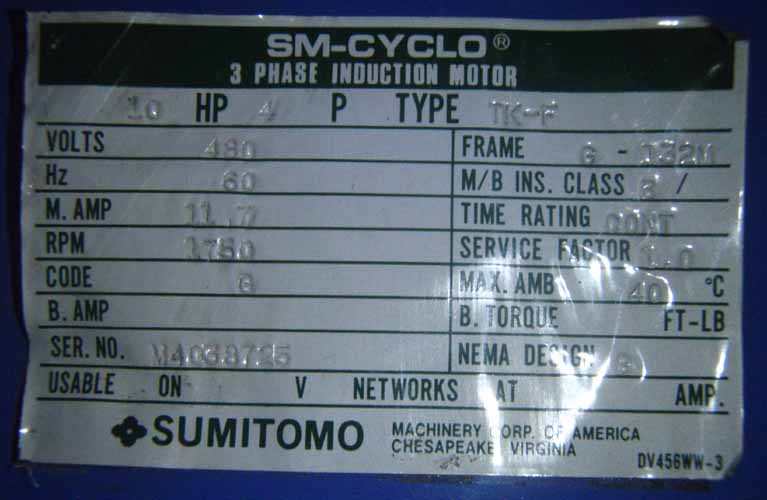

M O T O R       N A M E P L A T E       D A T A
HP      10 Poles      4 TYPE      TK-F
Volts      480 FRAME      G-132M
Hz      60 M/B INS. CLASS      B
MOTOR AMP      11.7 DUTY      CONT
RPM      1750 SERVICE FACTOR      1.0
CODE      G MAX. AMB      40 C
BRAKE AMP       BRAKE TORQUE       FT-LB
SERIAL NO.      M4038725 NEMA DESIGN      B
RPM
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  95mm
Notes:
Condition:
NEW SURPLUS
350 Lbs
