Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

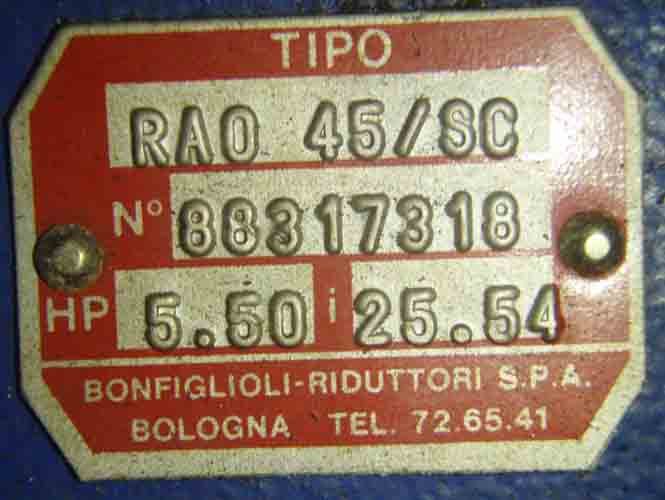

N A M E P L A T E       D A T A
Manufacturer:      BONFIGLIOLI     RIDUTTORI Our ID No.      006094
Model:      RAO 45 SC Ratio:      25.54
S/N      88317318
IP Speed       HP rating      5.50
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      6,600 Lb-Inches Shaft Diameters High Speed:  24mm
Low Speed:  45mm Hollow Output "C"
Weight      80 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1800 RPM
25.54:1

68 RPM
7.2 HP
1400 RPM
56 RPM
5.5 HP
900 RPM
34 RPM
3.8 HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071
Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

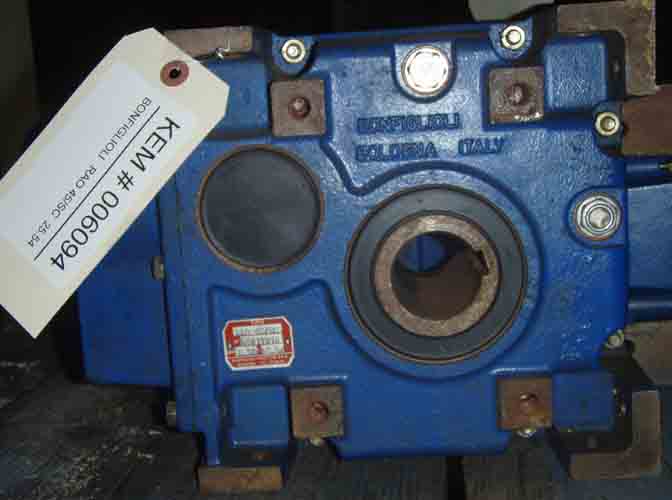

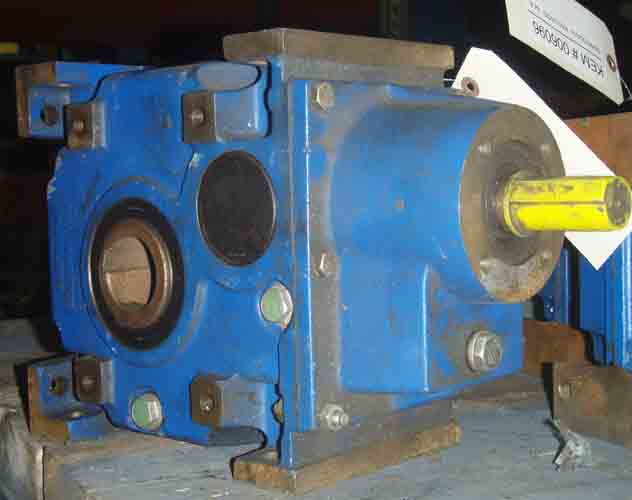

Click on images for larger view.
