- Speed Reducer Data Sheet -

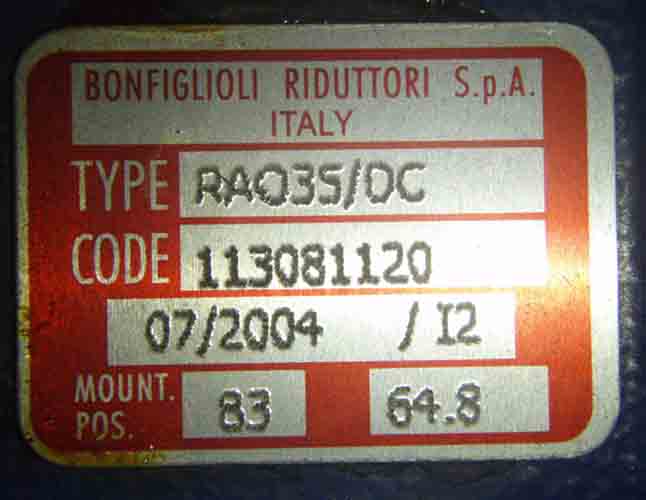

N A M E P L A T E       D A T A
Manufacturer:      BONFIGLIOLI     RIDUTTORI Our ID No.      006095
Model:      RAO 35 DC Ratio:      64.8
S/N      113081120
IP Speed       HP rating
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      3,200 Lb-Inches Shaft Diameters High Speed:  16mm
Low Speed:  35mm Hollow Output "C"
Weight      55 Lbs Approx. Assembly      B3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1800 RPM
64.8:1

27 RPM
1.4 HP
1400 RPM
22 RPM
1.1 HP
900 RPM
13.5 RPM
0.7 HP
Notes:
   Unused Surplus
