Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

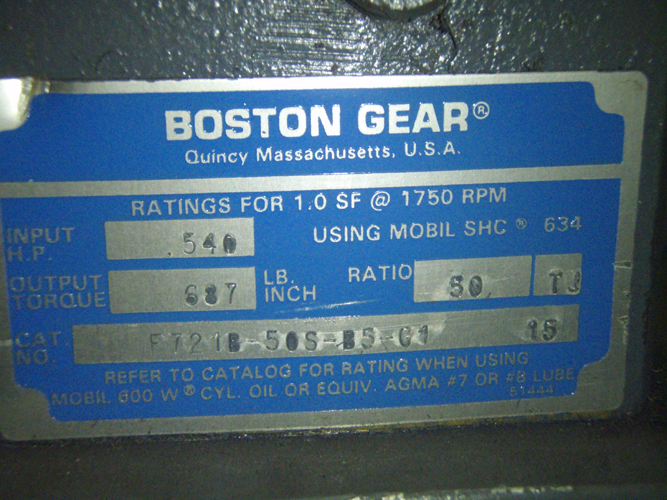

N A M E P L A T E       D A T A
Manufacturer:      BOSTON GEAR Our ID No.      006202
Model:      F721B-50S-B5-G1 Ratio:      50
IP Speed      1750 HP rating      0.54
OP Speed:      35 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      687 Lb-Inches Shaft Diameters High Speed:  56C
Low Speed:  1.000
Weight      25 Lbs Approx. Center Distance      2.06
H.S. Shaft
RPM
Ratio Approx. L.S.
Shaft RPM
HP
Ratings
1750 RPM
50

35 RPM
0.54 HP
1170 RPM
RPM
HP
870 RPM
RPM
HP
Notes:
    UNUSED SURPLUS
