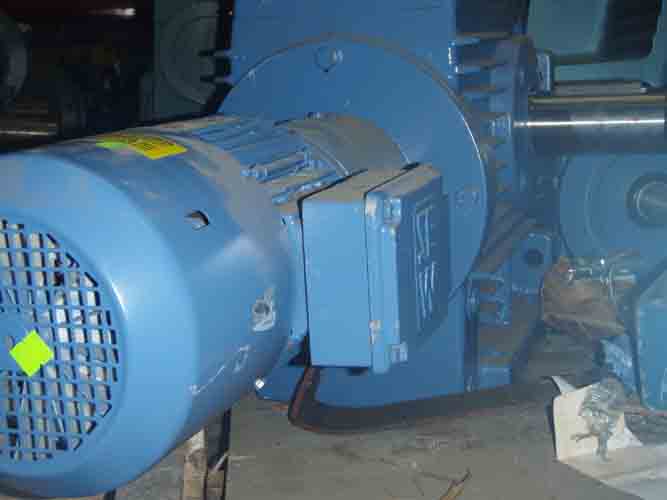

SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A
TYPE:      S90R60DT90L2BGHR Our ID No.      006244
SO#      870025495 7.01.87.001
Input RPM      3350 Output RPM      9.6
HP      3 Torque      14,378 lb-in
Ratio:      350 Service Factor      1.4
Mounting Pos      B3B
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT90L2BGHR Enclosure:
SO#      870025495 7.01.87.001
Volts      330 / 575 HZ      60
Amps      5.85 / 3.35 Code      G Nom Eff       Conn Dia.
HP      3.0 S.F.      1.15 Duty      CONT Design Letter      B
RPM      3350 Ins Class      F Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  2.875
Notes:
Condition: New Surplus
