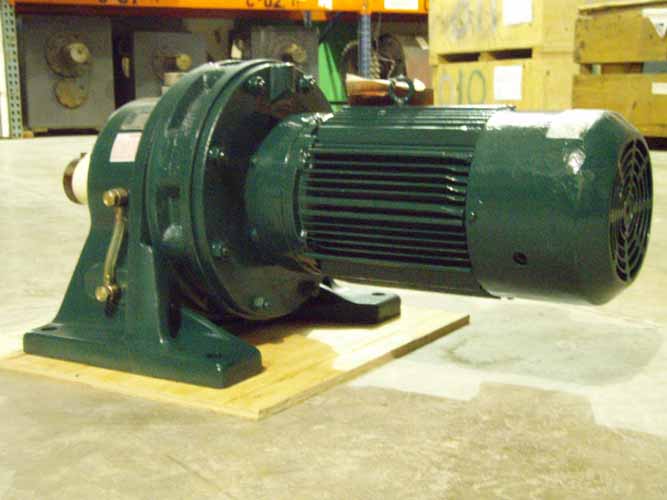

R E D U C E R       N A M E P L A T E       D A T A
MANUFACTURER      SM-CYCLO Our ID No.      006245
MODEL:      HM3175/11A RATIO      121
HP      5 SERVICE FACTOR      1.0
INPUT SPEED      1720 OUTPUT SPEED      14.5
S/N      D131375 Torque      21,700 lb-in
M O T O R       N A M E P L A T E       D A T A
HP      5 Poles      4 TYPE      TC-F/FB-5A
Volts      230/460 FRAME      F112M
Hz      60 M/B INS. CLASS      B/B
MOTOR AMP      12.6/6.3 DUTY      CONT
RPM      1720 SERVICE FACTOR      1.0
CODE      J MAX. AMB      40 C
BRAKE AMP      0.5/0.3 BRAKE TORQUE      27 FT-LB
SERIAL NO.      M4162101 NEMA DESIGN      B
RPM
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  2.750
Notes:
Condition:
Unused
Weight = 450 Lbs
