Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

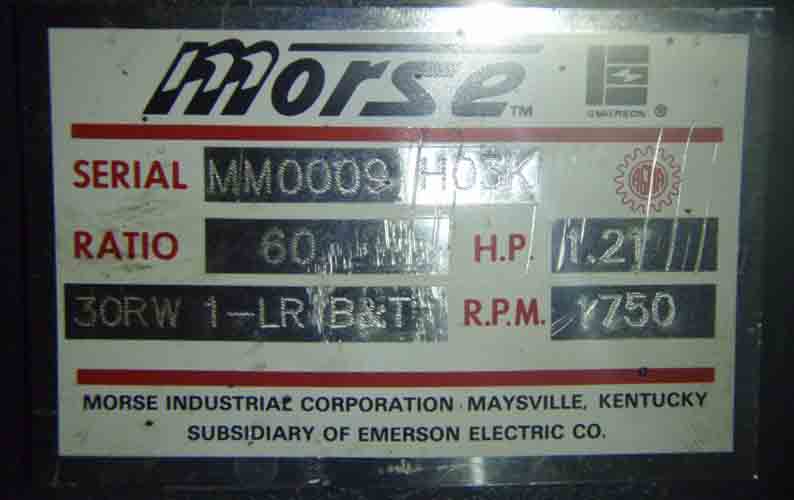

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.      006277
Model:      30RW1-LR-B & T Ratio:      60
S/N      MM0009 H03K Center Distance      3.00
IP Speed      1750 RPM HP rating      1.21 HP
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1,791 Lb-Inches Shaft Diameters High Speed:  1.000
Low Speed:  1.375
Weight      75 Lbs Approx. Assembly      ASSY # LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
60

29.2 RPM
1.21 HP
1170 RPM
19.2 RPM
1.02 HP
870 RPM
14.5 RPM
0.88 HP
580 RPM
9.7 RPM
0.69 HP
Notes:
   NEW SURPLUS, WITH COOLING FAN
