SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A

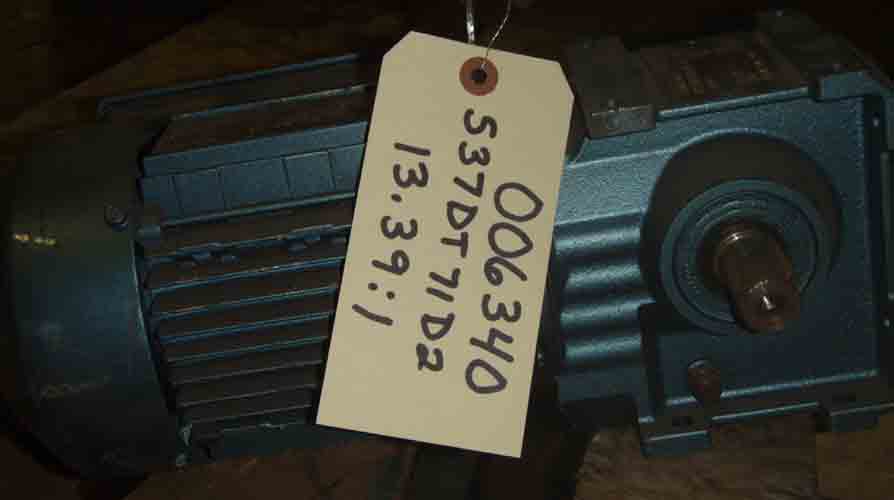

TYPE:      S37DT71D2 Our ID No.      006340
SO#      850196620.03.03.001
Input RPM      3300 Output RPM      246
HP       Torque      174 lb-in
Ratio:      13.39 Service Factor      2
Mounting Pos      M5B
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71D2 Enclosure:      TEFC 3PH
SO#      850196620.03.03.001
Volts      230 / 460 HZ      60
Amps      2.8 / .41 Code      F Nom Eff       Conn Dia.      DT79
HP      0.75 S.F.      1.0 Duty      CONT Design Letter      B
RPM      3300 Ins Class      B Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  20mm (0.787 inch)
Notes:
Condition: New Surplus
