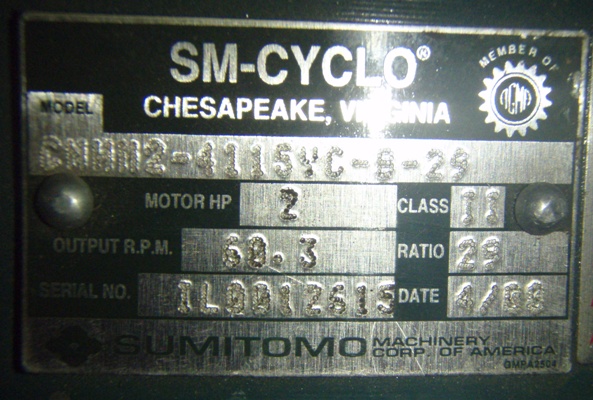

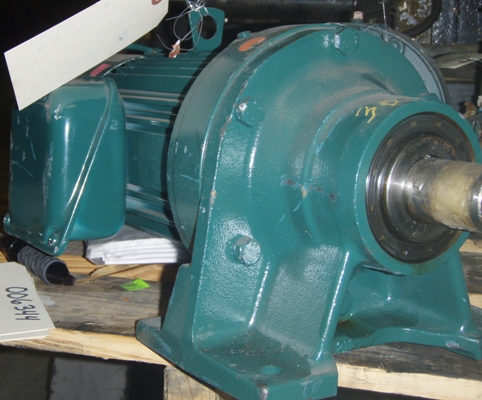

R E D U C E R       N A M E P L A T E       D A T A
MANUFACTURER      SM-CYCLO Our ID No.      006343
MODEL:      CNHM2-4115YC-8-29 RATIO      29
HP      2 SERVICE FACTOR
INPUT SPEED       OUTPUT SPEED      60.3
S/N       Torque       lb-in

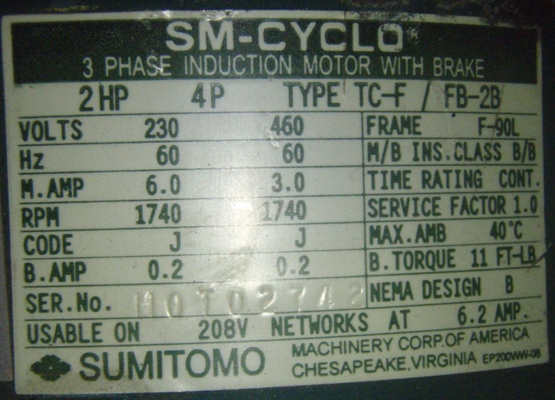

M O T O R       N A M E P L A T E       D A T A
HP      2 Poles       TYPE      TC-F
Volts      230/460 FRAME
Hz      60 M/B INS. CLASS
MOTOR AMP      M:6.0/3.0 B:0.2/0.2 DUTY      CONT
RPM      1740 SERVICE FACTOR      1.0
CODE      J MAX. AMB      40 C
BRAKE AMP       BRAKE TORQUE      11 FT-LB
SERIAL NO.      MOTO2742 NEMA DESIGN      B
RPM
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:New surplus
