R E D U C E R       N A M E P L A T E       D A T A
M A N U F A C T U R E R:     NORD
TYPE:      SK472-100L/4 BRE40HL Our ID No.      006354
S/N#      8004424950.00
Input RPM       Output RPM      86
HP       Torque      2,204 lb inches lb-in
Ratio:      20.17 Service Factor
Mounting Pos      B3
M O T O R       N A M E P L A T E       D A T A
TYPE:      SK100L/4 BRE40HL Enclosure:      TEFC
S/N#      8004424950.00
Volts      230/460 HZ      60
Amps      9.0/4.50 Code       Nom Eff       Conn Dia.
HP      3 HP S.F.      1.15 Duty      CONT Design Letter
RPM      1705 Ins Class       Max Amb      40C
Brake V      230 Torque      29.5 lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition: Unused surplus



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

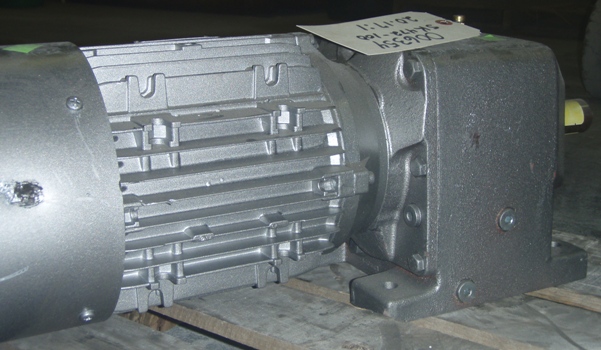

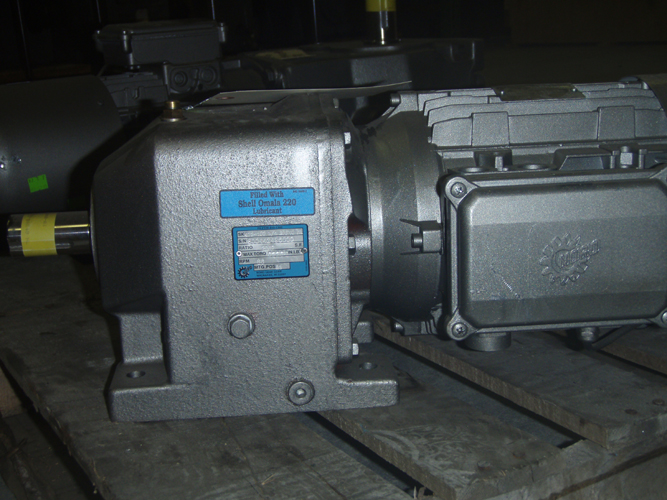

Click on images for larger view.
