DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A
M A N U F A C T U R E R:     NORD
TYPE:      SK9032.1-100L/40 BRE40 HL Our ID No.      006356
S/N#      S/N/8004474116.00 002
Input RPM      41 Output RPM
HP       Torque      07328 lb-in
Ratio:      40.36 Service Factor
Mounting Pos      B3
M O T O R       N A M E P L A T E       D A T A
TYPE:      SK100L/40 BRE40 HL Enclosure:      TEFC
S/N#      800447411600
Volts      230/460 HZ      60
Amps      15.20/7.62 Code      G Nom Eff       Conn Dia.
HP      5.00 S.F.      1.00 Duty      CONT Design Letter
RPM      1725 Ins Class      F Max Amb
Brake V      230 Torque       lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition: Unused



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

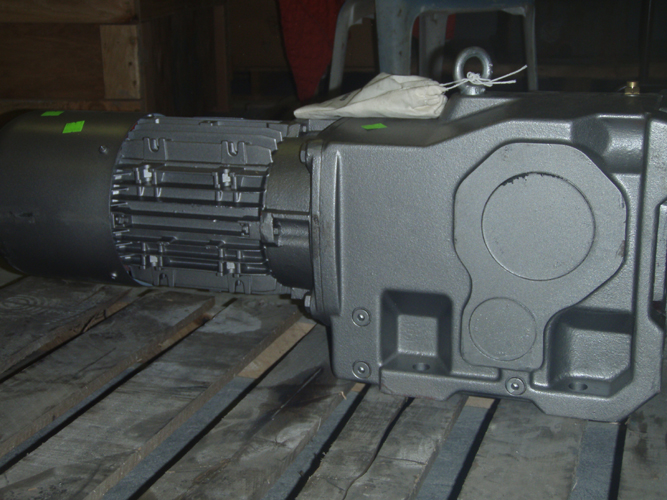

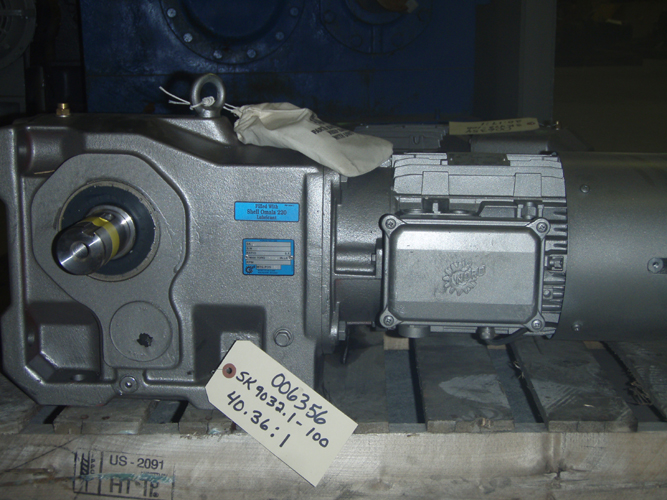

Click on images for larger view.
