SEW-EURODRIVE DATA SHEET

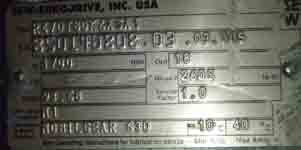

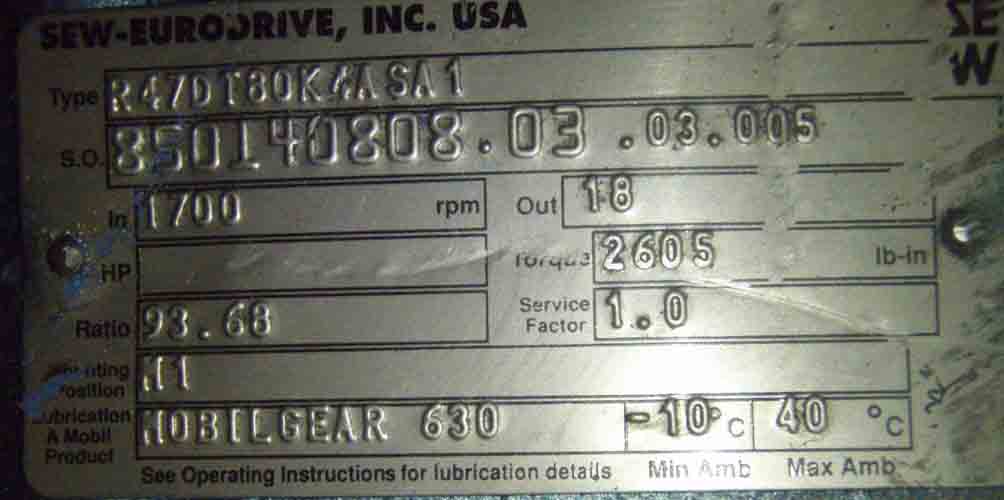

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R47DT80K4ASA1 Our ID No.      006360
SO#      850140808.03.03.005
Input RPM      1700 Output RPM      18
HP       Torque      2,605 lb-in
Ratio:      93.68 Service Factor      1
Mounting Pos      M1

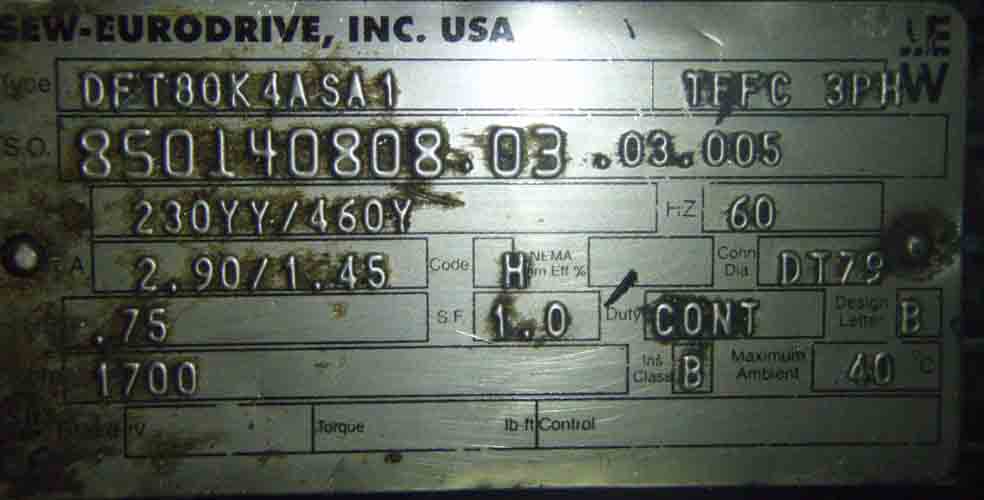

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80K4ASA1 Enclosure:      TEFC 3PH
SO#      850140808.03.03.005
Volts      230 / 460 HZ      60
Amps      2.90 / 1.45 Code      H Nom Eff       Conn Dia.      DT79
HP      0.75 S.F.      1 Duty      CONT Design Letter      B
RPM      1700 Ins Class      B Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  30mm (1.181 inch)
Notes:
Condition:


Used

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

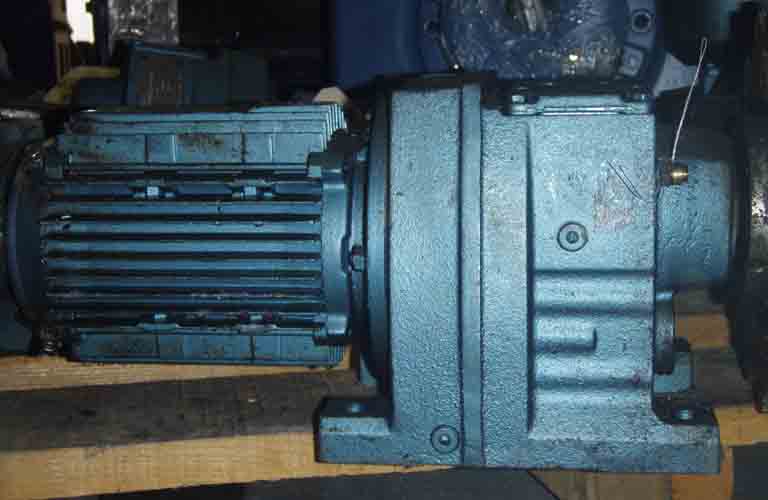

Click on images for larger view.
