- Speed Reducer Data Sheet -

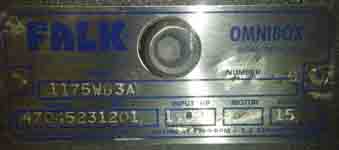

N A M E P L A T E       D A T A
Manufacturer:      FALK     OMNIBOX SERIES Our ID No.      006376
Model No:      1175WB3A Ratio:      15:1
S/N      47045231201 Center Distance      1.75
IP Speed      1750 HP rating      1.02
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      473 Lb-Inches Shaft Diameters High Speed:  0.625
Low Speed:  0.875
Weight      25 Lbs Approx. Assembly      3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
15:1

117 RPM
1.026 HP
1170 RPM
78 RPM
0.803 HP
870 RPM
58 RPM
0.653 HP
Notes:
   NEW SURPLUS
