Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      MORSE     Raider Our ID No.       006400
Model:       325Q180H15 Ratio:       1.5
S/N       XI 1274K03K Center Distance       3.25
IP Speed       HP rating       4.71
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       2,273 Lb-Inches Shaft Diameters High Speed:   180TC
Low Speed:   2.1875
Weight       90 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
1.5

116.6 RPM
4.71 HP
1170 RPM
77.3 RPM
3.97 HP
Notes:
    NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

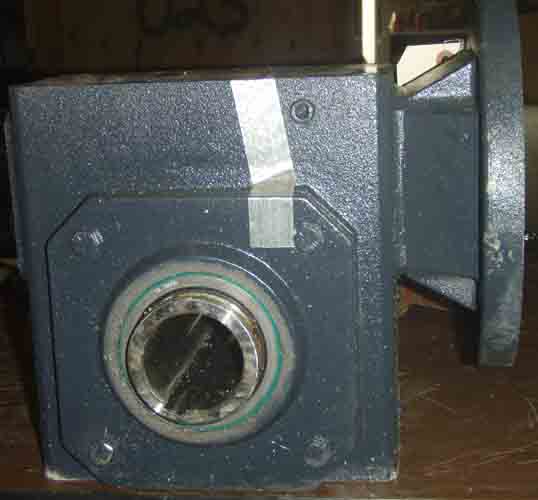

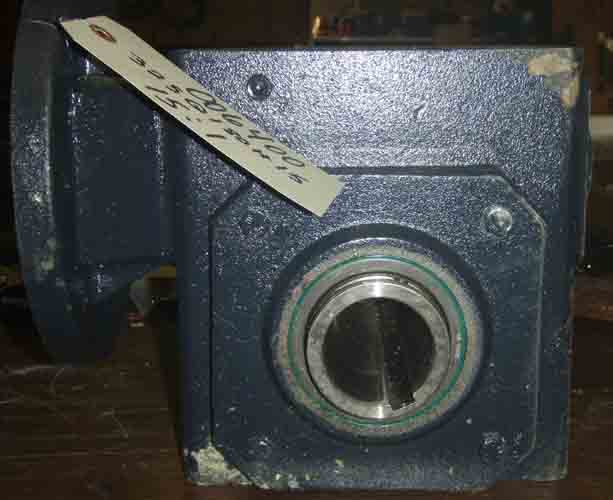

Click on images for larger view.
