SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A

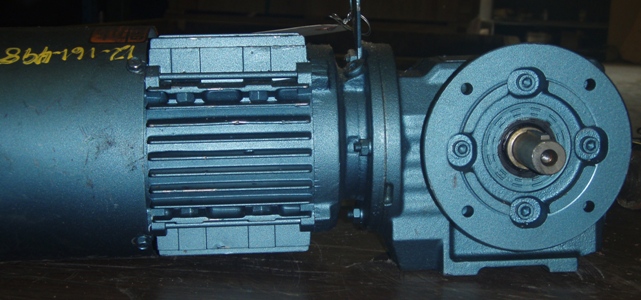

TYPE:      SF37DT71C4BMG05HR Our ID No.      006401
SO#      850296393.04.04.001
Input RPM      1720 Output RPM      31
HP       Torque      524 lb-in
Ratio:      55.93 Service Factor      1.4
Mounting Pos      M5B
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71C4BMG05HR Enclosure:      TEFC 3PH
SO#      850296393.04.04.001
Volts      230 / 460 HZ      60
Amps      1.32 / .66 Code      J Nom Eff       Conn Dia.      DT79
HP      0.33 S.F.      1.0 Duty      CONT Design Letter
RPM      1720 Ins Class      B Max Amb      40
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  .750
Notes:
Condition:
