- Speed Reducer Data Sheet -

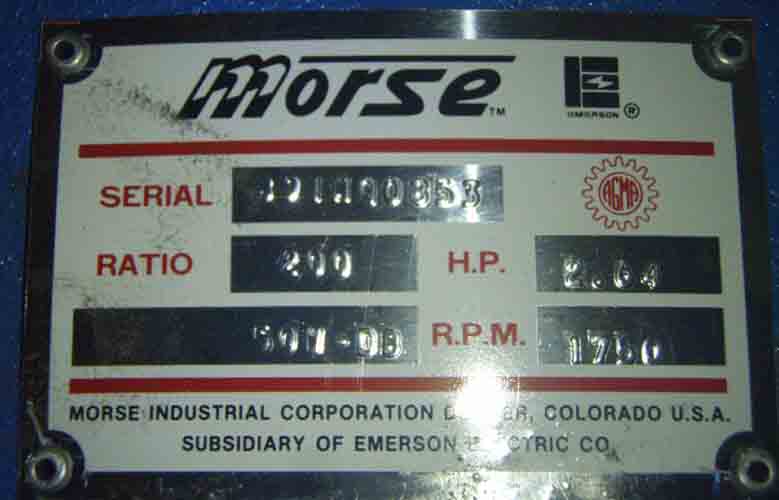

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006437
Model:       50W-DB Ratio:       200
S/N       891M00853 Center Distance      5.00 / 2.50
IP Speed       1750 HP rating       2.64
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       13,117 Lb-Inches Shaft Diameters High Speed:   0.750
Low Speed:   2.375
Weight       300 Lbs Approx. Assembly       ASSY L-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
200

8.75 RPM
2.64 HP
1170 RPM
5.75 RPM
1.87 HP
870 RPM
4.35 RPM
1.48 HP
580 RPM
2.90 RPM
1.05 HP
Notes:
    NEW SURPLUS
