Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

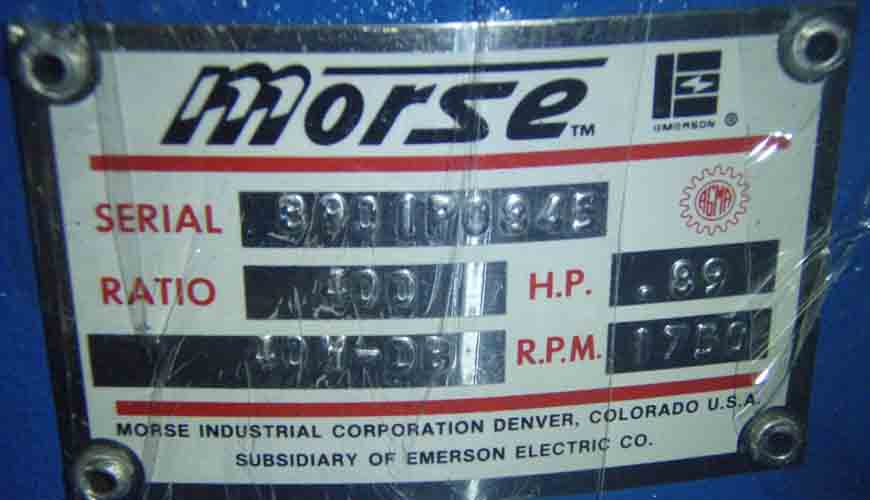

N A M E P L A T E       D A T A
Manufacturer:      MORSE     PowerGear Our ID No.       006442
Model:       40W-DB Ratio:       400:1
S/N       B901P0845 Center Distance       4.00 / 2.00
IP Speed       1750 HP rating       0.89
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating       7,615 Lb-Inches Shaft Diameters High Speed:   0.750
Low Speed:   1.750
Weight       150 Lbs Approx. Assembly       ASSY # L-LR
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
400:1

438 RPM
.89 HP
1170 RPM
2.88 RPM
.63 HP
870 RPM
2.18 RPM
.50 HP
580 RPM
1.45 RPM
.35 HP
Notes:
    NEW SURPLUS
