Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME

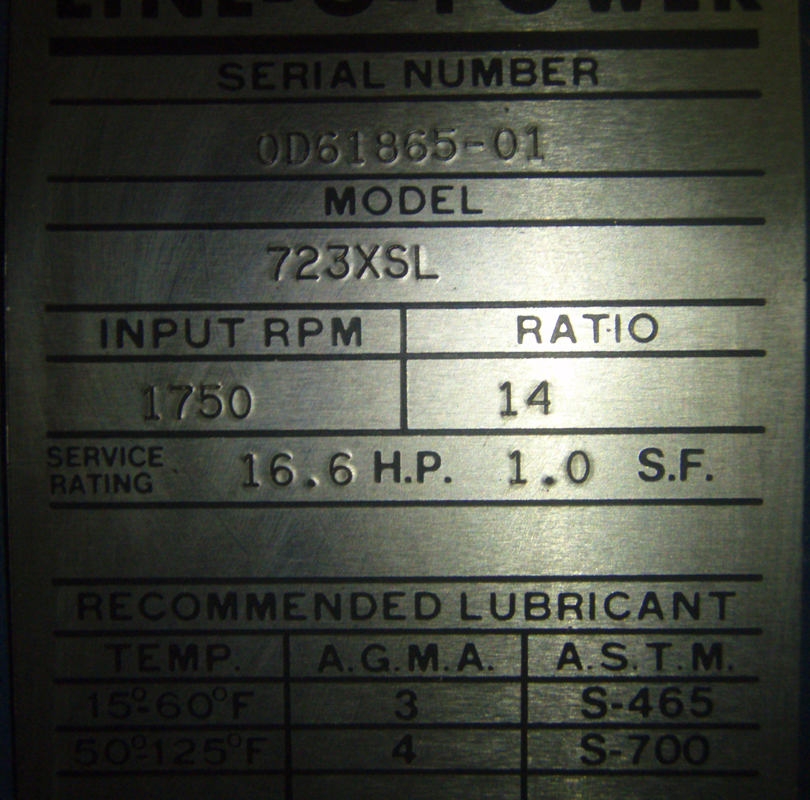

N A M E P L A T E       D A T A
Manufacturer:      Foote-Jones Our ID No.      006444
Model:      723XSL Ratio:      14
MO# or S/N      OD61865-01 Alt. S/N
IP Speed      1750 HP rating      16.6 Cat. Rating
OP Speed:       SF / SC      1.0
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      8,110 Lb-Inches Shaft Diameters High Speed:  1.500
Low Speed:  2.250
Weight      260 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
14.0

100 RPM
16.6 HP
1170 RPM
84 RPM
11.1 HP
870 RPM
62 RPM
8.40 HP
580 RPM
41 RPM
5.70 HP
Notes:
Condition:
Unused surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
