SEW-EURODRIVE DATA SHEET

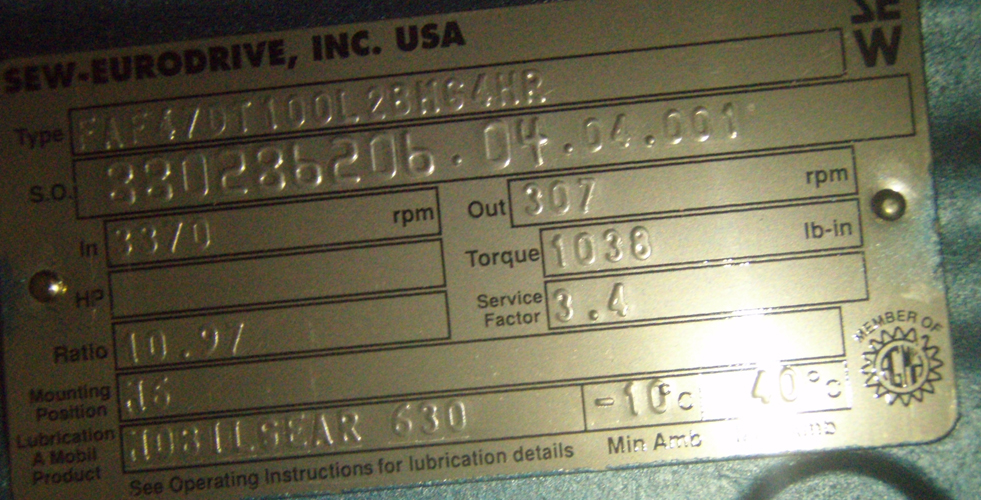

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      FAF47DT100L2BMG4HR Our ID No.      006518
SO#      880286206.04.04.001
Input RPM      3370 Output RPM      307
HP       Torque      1,038 lb-in
Ratio:      10.97 Service Factor      3.4
Mounting Pos      M6

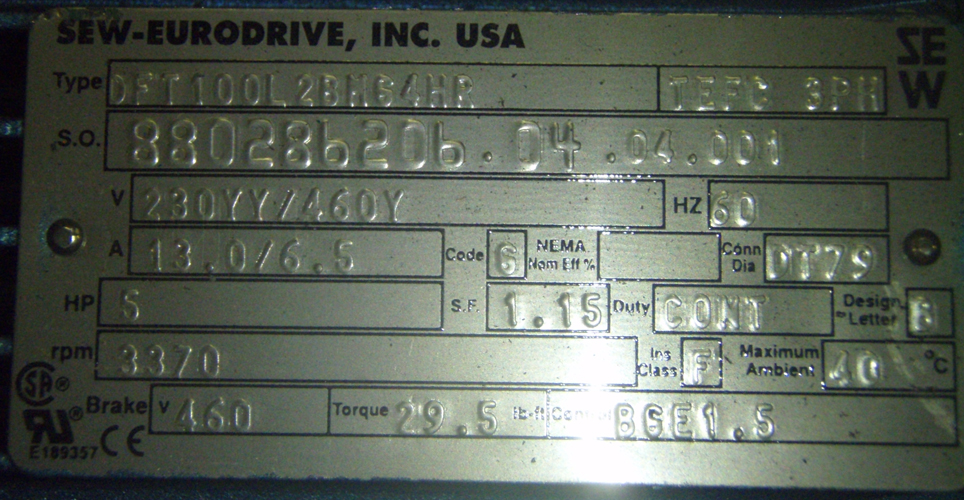

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT100L2BMG4HR Enclosure:      TEFC
SO#      880286206.04.04.001
Volts      230/460 HZ      60
Amps      13.0/6.5 Code      G Nom Eff       Conn Dia.      DT79
HP      5 S.F.      1.15 Duty      CONT Design Letter
RPM      3370 Ins Class      F Max Amb      40 c
Brake V      460 Torque      29.5 lb-ft Control      BGE1.5
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus
