Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

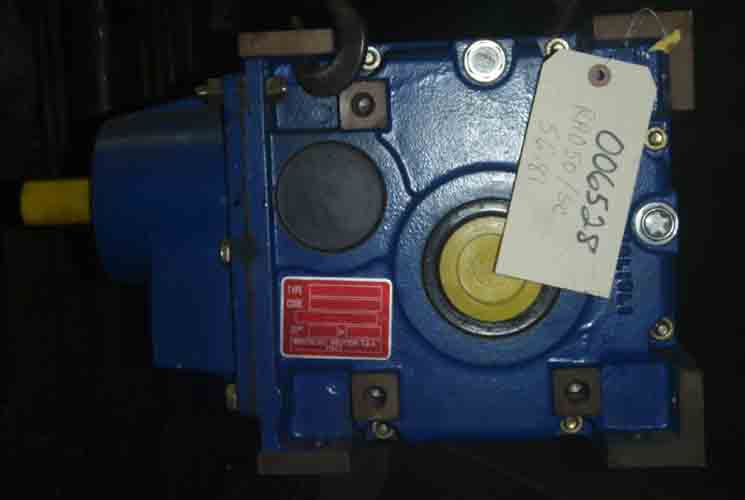

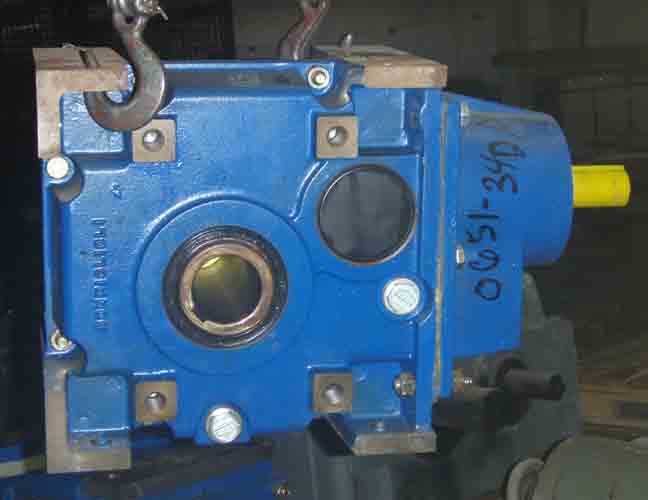

Manufacturer:      BONFIGLIOLI     RIDUTTORI Our ID No.      006528
Model:      RAO 50 SC Ratio:      56.81
S/N      113440360
IP Speed       HP rating
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      13,000 Lb-Inches Shaft Diameters High Speed:  28mm
Low Speed:  50mm Hollow Output "C"
Weight      135 Lbs Approx. Assembly      B3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1800 RPM
56.81:1

30 RPM
6.2 HP
1400 RPM
25 RPM
4.8 HP
900 RPM
15.3 RPM
3.4 HP
Notes:
   Unused Surplus
