Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

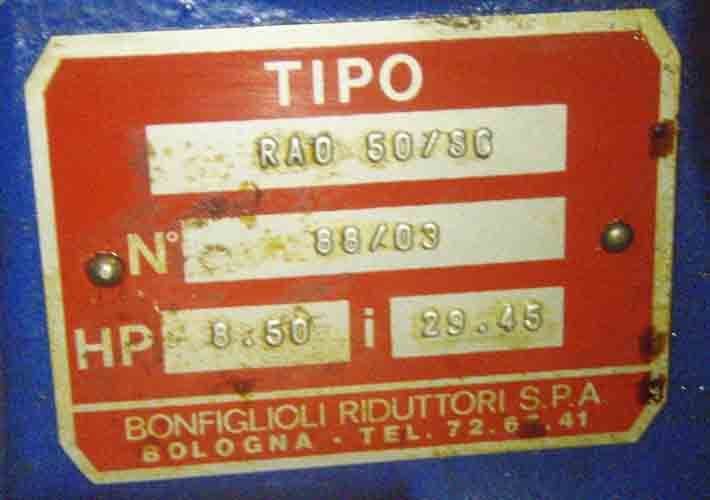

N A M E P L A T E       D A T A
Manufacturer:      BONFIGLIOLI     RIDUTTORI Our ID No.      006529
Model:      RAO 50 SC Ratio:      29.45
S/N      88/03
IP Speed       HP rating      8.5
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      11,700 Lb-Inches Shaft Diameters High Speed:  28mm
Low Speed:  50mm Hollow Output "C"
Weight      135 Lbs Approx. Assembly      B3
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1800 RPM
29.45:1

59 RPM
11 HP
1400 RPM
48.5 RPM
8.5 HP
900 RPM
29.5 RPM
6 HP
Notes:
   Unused Surplus

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071
Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

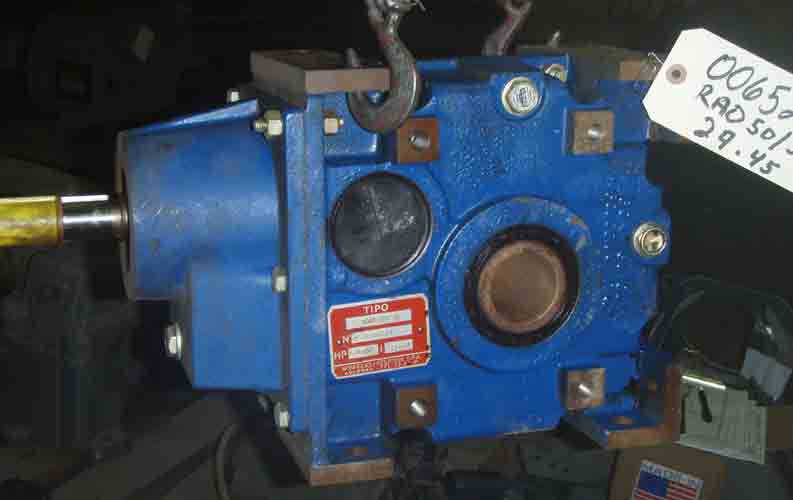

Click on images for larger view.
