SEW-EURODRIVE DATA SHEET

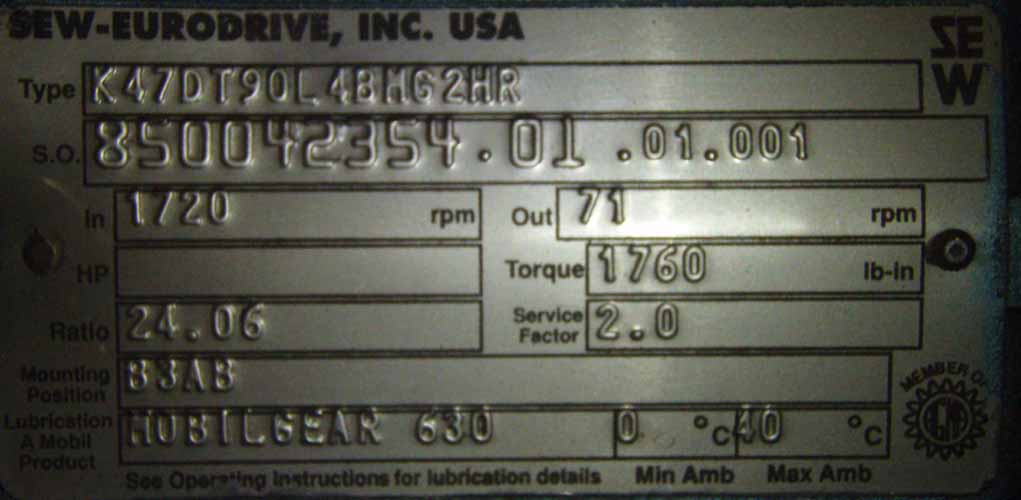

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K47DT90L4BMG2HR Our ID No.      006604
SO#      850042354.01.01.001
Input RPM      1720 Output RPM      71
HP       Torque      1,760 lb-in
Ratio:      24.06 Service Factor      2.0
Mounting Pos      B3AB
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT90L4BMG2HR Enclosure:      TEFC 3PH
SO#      850042354.01.01.001
Volts      230/460 HZ      60
Amps      6.2/3.1 Code      K Nom Eff       Conn Dia.      DT79
HP      2 S.F.      1.0 Duty      CONT Design Letter      B
RPM      1720 Ins Class      B Max Amb      40C
Brake V      120AC Torque      14.8 lb-ft Control      BG3.0
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  1.250
Notes:
Condition:


NEW SURPLUS
