SEW-EURODRIVE DATA SHEET

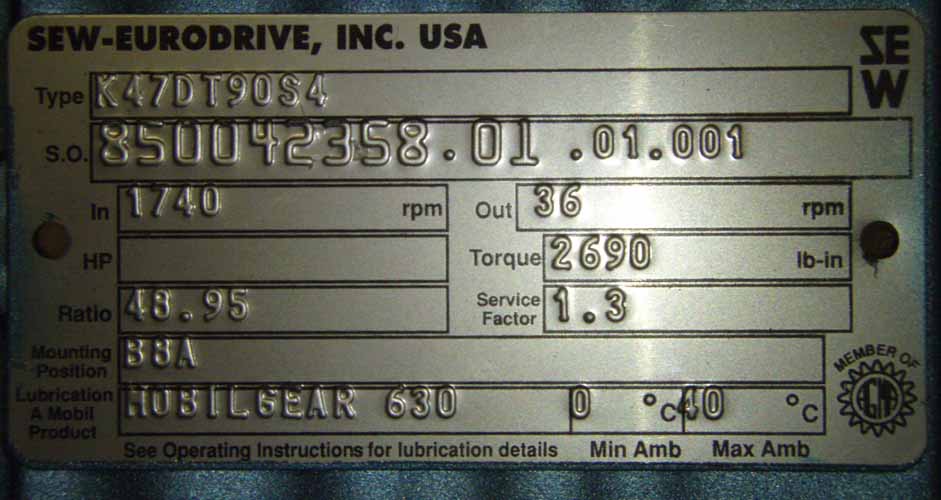

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K47DT90S4 Our ID No.      006605
SO#      850042358.01.01.001
Input RPM      1740 Output RPM      36
HP       Torque      2,690 lb-in
Ratio:      48.95 Service Factor      1.3
Mounting Pos      B8A

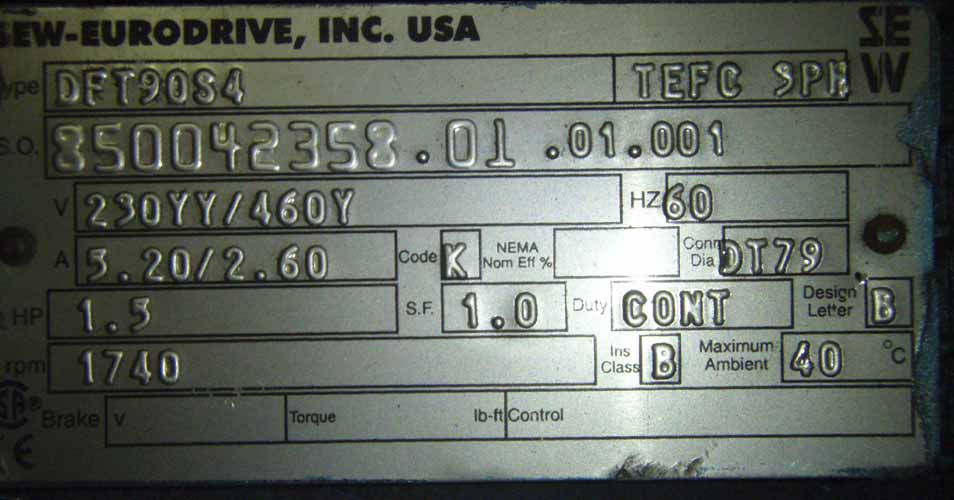

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT90S4 Enclosure:      TEFC 3PH
SO#      850042358.01.01.001
Volts      230/460 HZ      60
Amps      5.20/2.60 Code      K Nom Eff       Conn Dia.      DT79
HP      1.5 S.F.      1.0 Duty      CONT Design Letter      B
RPM      1740 Ins Class      B Max Amb      40C
Brake V       Torque       lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  1.250
Notes:
Condition:


NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
