SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K47DT90S4BMG2HRMM11B Our ID No.      006606
SO#      850087593.02.02.005
Input RPM      300-1800 Output RPM      6.5-33
HP       Torque      2,530 lb-in
Ratio:      46.03 Service Factor      1.4
Mounting Pos      M1B

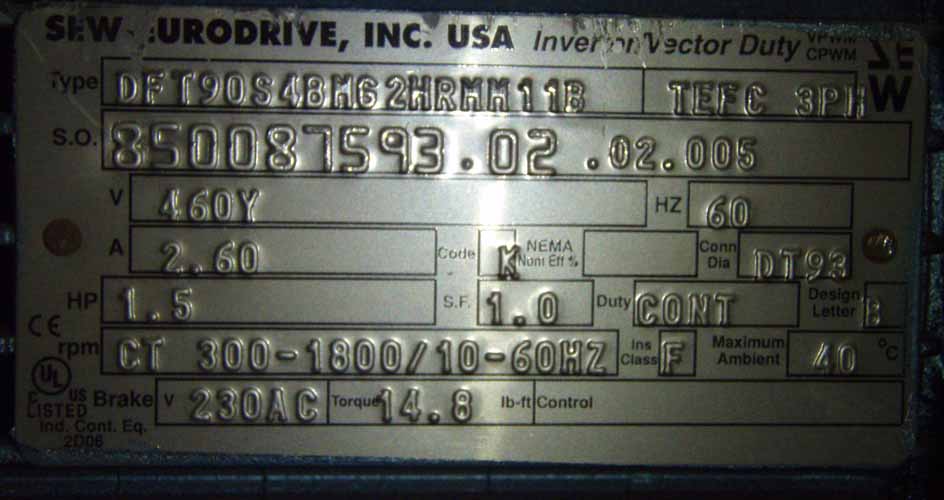

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT90S4BMG2HRMM11B Enclosure:      TEFC 3PH
SO#      850087593.02.02.005
Volts      460 HZ      60
Amps      2.60 Code      K Nom Eff       Conn Dia.      DT93
HP      1.5 S.F.      1.0 Duty      CONT Design Letter      B
RPM      300-1800/10-60HZ Ins Class      F Max Amb      40 C
Brake V      230AC Torque      14.8 lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  1.250
Notes:
Condition:


NEW SURPLUS
