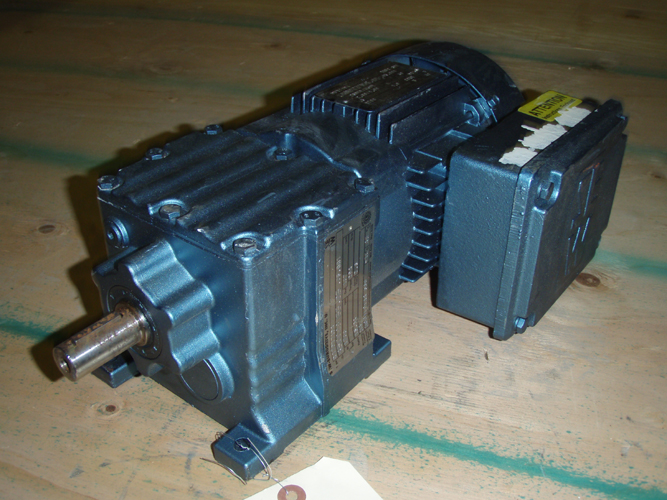

SEW-EURODRIVE DATA SHEET
R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R17DT71D4 Our ID No.       006636
SO#      850023755.05.05.001
Input RPM       1700 Output RPM       107
HP       0.5 Torque       294 lb-in
Ratio:      15.84 Service Factor       2.6
Mounting Pos       M4
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71D4 Enclosure:       TEFC 3 PH
SO#      850023755.05.05.001
Volts      230/460 HZ       60
Amps       2.00/1.00 Code      H Nom Eff       Conn Dia.       DT79
HP      0.50 S.F.       1.0 Duty      CONT Design Letter      B
RPM       1700 Ins Class       Max Amb       40 C
Brake V       Torque       lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus
