SEW-EURODRIVE DATA SHEET

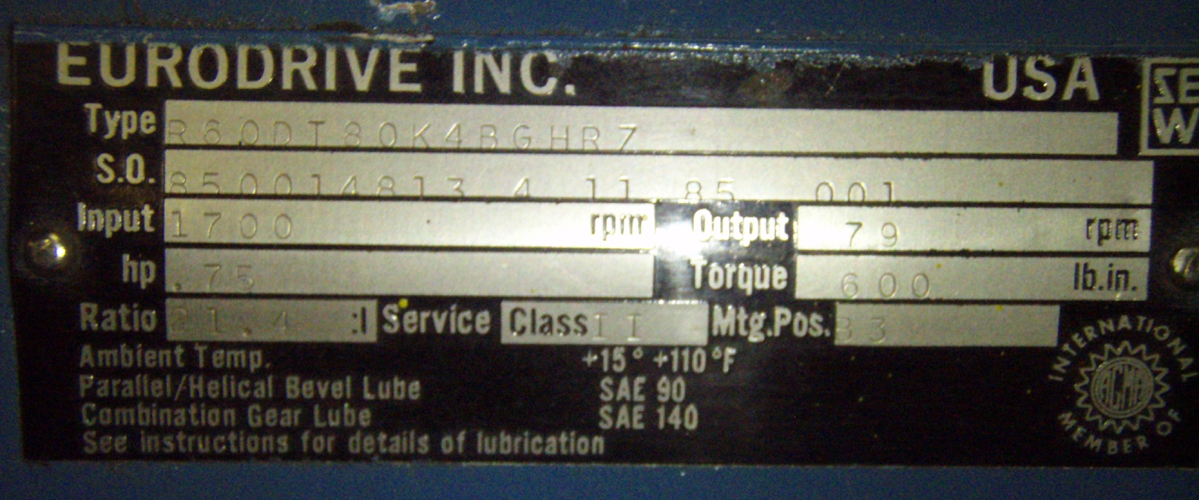

R E D U C E R       N A M E P L A T E       D A T A
TYPE:       R60DT80K4BGHRZ Our ID No.       006640
SO#      850014813.4.11.85.001
Input RPM      1700 Output RPM      79
HP      0.75 Torque      600 lb-in
Ratio:      21.4 Service Factor      CL II
Mounting Pos      B3

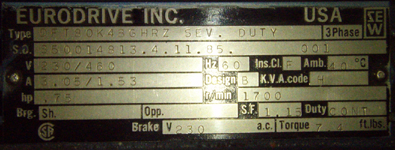

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80K4BGHRZ SEV. DUTY Enclosure:      TEFC 3 PH
SO#      850014813.4.11.85.001
Volts      230/460 HZ       60
Amps       3.05/1.53 Code       H Nom Eff       Conn Dia.
HP       0.75 S.F.       1.15 Duty      CONT Design Letter      B
RPM       1700 Ins Class       F Max Amb       40
Brake V       230 Torque       7.4 lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus
