SEW-EURODRIVE DATA SHEET

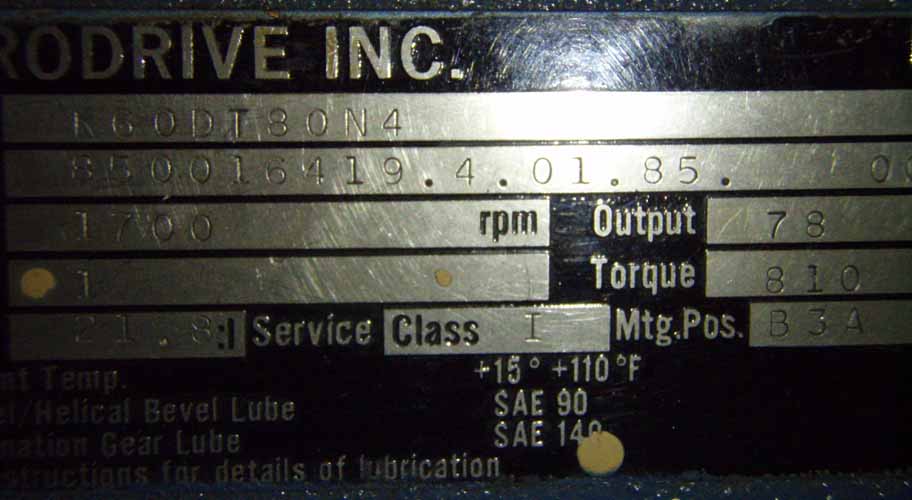

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K60DT80N4 Our ID No.      006642
SO#      850016419.4.01.85.006
Input RPM      1700 Output RPM      78
HP      1 Torque      810 lb-in
Ratio:      21.8 Service Factor
Mounting Pos      B3A

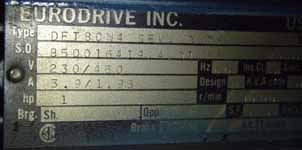

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80N4 SEV.DUTY Enclosure:      TEFC 3PH
SO#      850016419.4.01.85.006
Volts      230/460 HZ      60
Amps      3.9/1.95 Code      H Nom Eff       Conn Dia.
HP      1 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1700 Ins Class      F Max Amb      40C
Brake V       Torque       lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  1.375
Notes:
Condition:


NEW SURPLUS
