SEW-EURODRIVE DATA SHEET

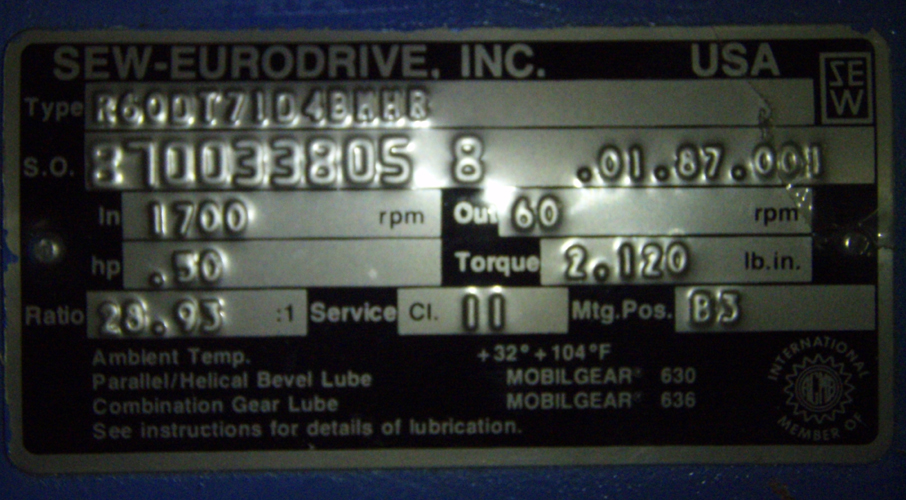

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R60DT71D4BMHR Our ID No.      006643
SO#      870033805.8.01.87.001
Input RPM      1700 Output RPM      60
HP      0.50 Torque      2,120 lb-in
Ratio:      28.93 Service Factor      CL II
Mounting Pos      B3

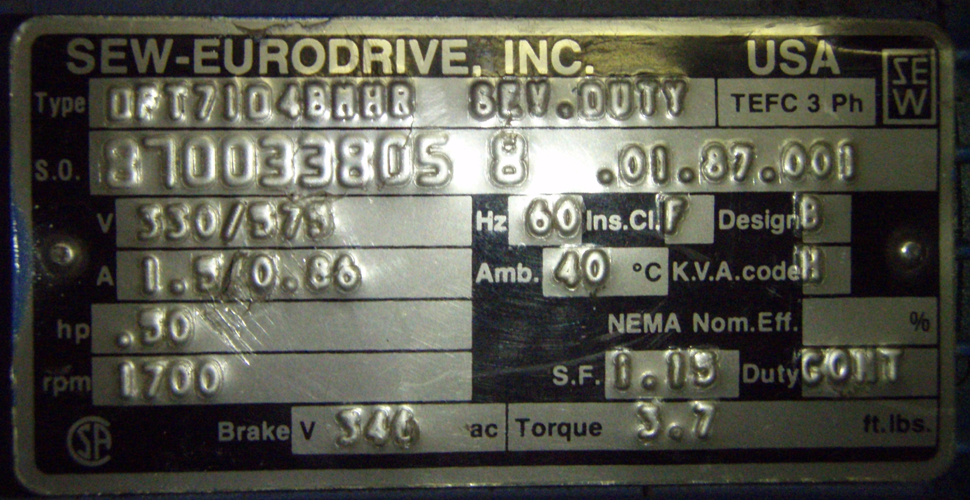

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT71D4BMHR SEV. DUTY Enclosure:      TEFC 3PH
SO#      870033805.8.01.87.001
Volts      330/575 HZ      60
Amps      1.5/0.86 Code      H Nom Eff       Conn Dia.
HP      0.50 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1700 Ins Class      F Max Amb      40 C
Brake V      346 Torque      3.7 lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus
