SEW-EURODRIVE DATA SHEET

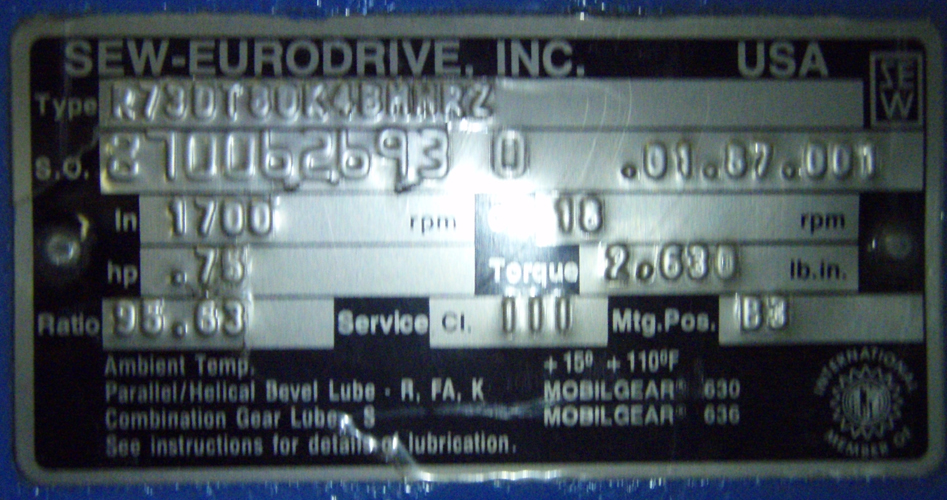

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R73DT80K4BMHRZ Our ID No.      006646
SO#      870062693.0.01.87.001
Input RPM       1700 Output RPM      18
HP       0.75 Torque      2,630 lb-in
Ratio:      95.63 Service Factor      CL III
Mounting Pos      B3
M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80K4BMHRZ S.DUTY Enclosure:       TEFC 3 PH
SO#      870062693.0.01.87.001
Volts      330/575 HZ      60
Amps      2.14/1.22 Code      H Nom Eff       Conn Dia.
HP       0.75 S.F.      1.15 Duty      CONT Design Letter      B
RPM       1700 Ins Class       F Max Amb      40 C
Brake V       346 Torque       7.4 lb-ft Control
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

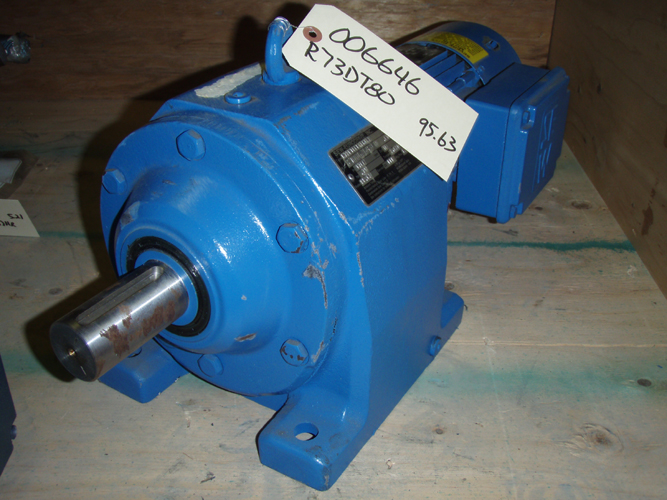

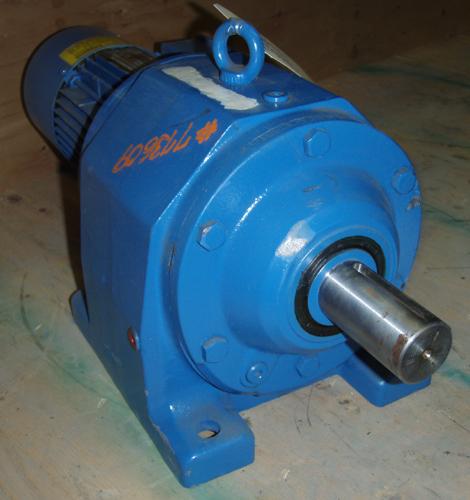

Click on images for larger view.
