SEW-EURODRIVE DATA SHEET

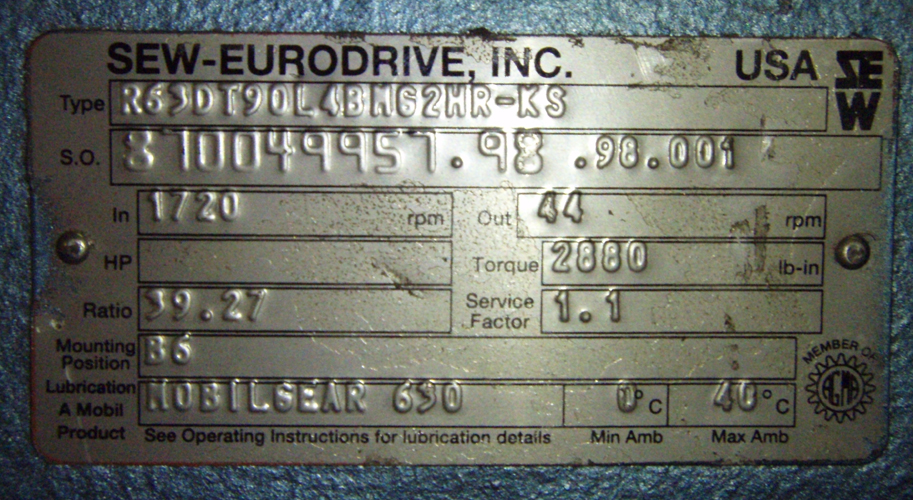

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R63DT90L4BMG2HR-KS Our ID No.      006650
SO#      870049957.98.98.001
Input RPM      1720 Output RPM      44
HP      2.0 Torque      2,880 lb-in
Ratio:      39.27 Service Factor       1.1
Mounting Pos       B6
M O T O R       N A M E P L A T E       D A T A
TYPE:       DFT90L4BMG2HR-KS Enclosure:       TEFC 3PH
SO#       870049957.98.98.001
Volts      230YY/460Y HZ       60
Amps      6.2/3.10 Code      K Nom Eff       Conn Dia.      DT79
HP      2.0 S.F.       1.15 Duty      CONT Design Letter       B
RPM       1720 Ins Class       F Max Amb       40 C
Brake V      460 Torque      14.0 lb-ft Control      BG1.5
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:
Notes:
Condition:
Unused surplus
