- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      DODGE APG Our ID No.      006666
Model:      140-D-M-2-A-1-5-A1
     140DM2A5.0A1
     140-DM2A1-5-A1 		Ratio:      5.0
MO# or S/N      M85719 GBC Alt. S/N      079163-56-GR
IP Speed      1750 HP rating      5.3 Cat. Rating
OP Speed:      355 SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      910 Lb-Inches Shaft Diameters High Speed:  140TC
Low Speed:  1.000
Weight      50 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
5.0:1

355 RPM
5.3 HP
1430 RPM
290 RPM
4.48 HP
1170 RPM
235 RPM
3.83 HP
Notes:
Condition:


NEW SURPLUS

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

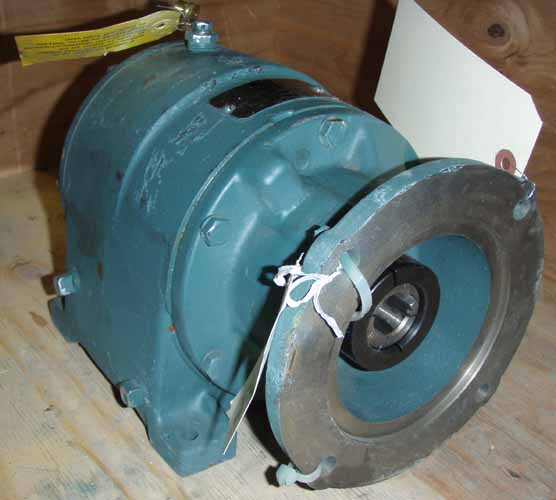

Click on images for larger view.
