Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006689
Model:      445A3-CB Ratio:      45.39
MO# or S/N      04-068062-01 Alt. S/N
IP Speed      1750 HP rating      150 Cat. Rating
OP Speed:      38.6 SF / SC      2.39 SF
Date      11/04 Oil Capacity      24.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      585,000 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  6.500
Weight      4,500 Lbs Approx. Assembly      ASSEMBLY 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 2 cooling fans
1750 RPM
45.39:1

37 RPM
358 HP
298 HP
1430 RPM
30 RPM
294 HP
264 HP
1170 RPM
25 RPM
241 HP
236 HP
870 RPM
18 RPM
179 HP
Thermal ratings exceed
mechanical HP ratings
720 RPM
15 RPM
149 HP
580 RPM
12.5 RPM
120 HP
Notes:
Condition:


Unit in very good condition. Was in service for approx. 2 years.

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

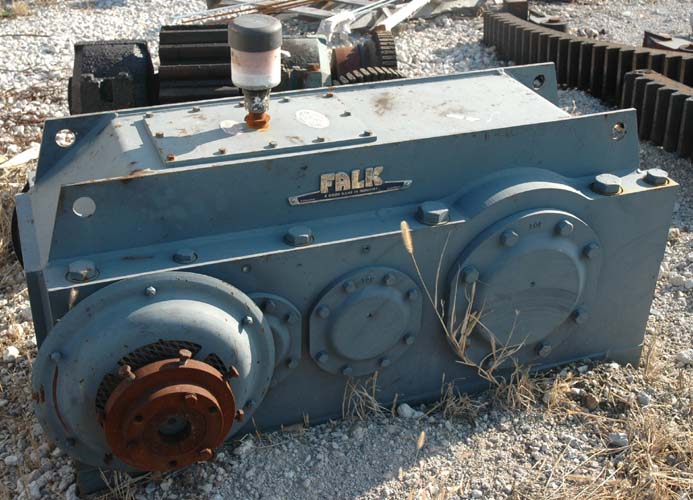

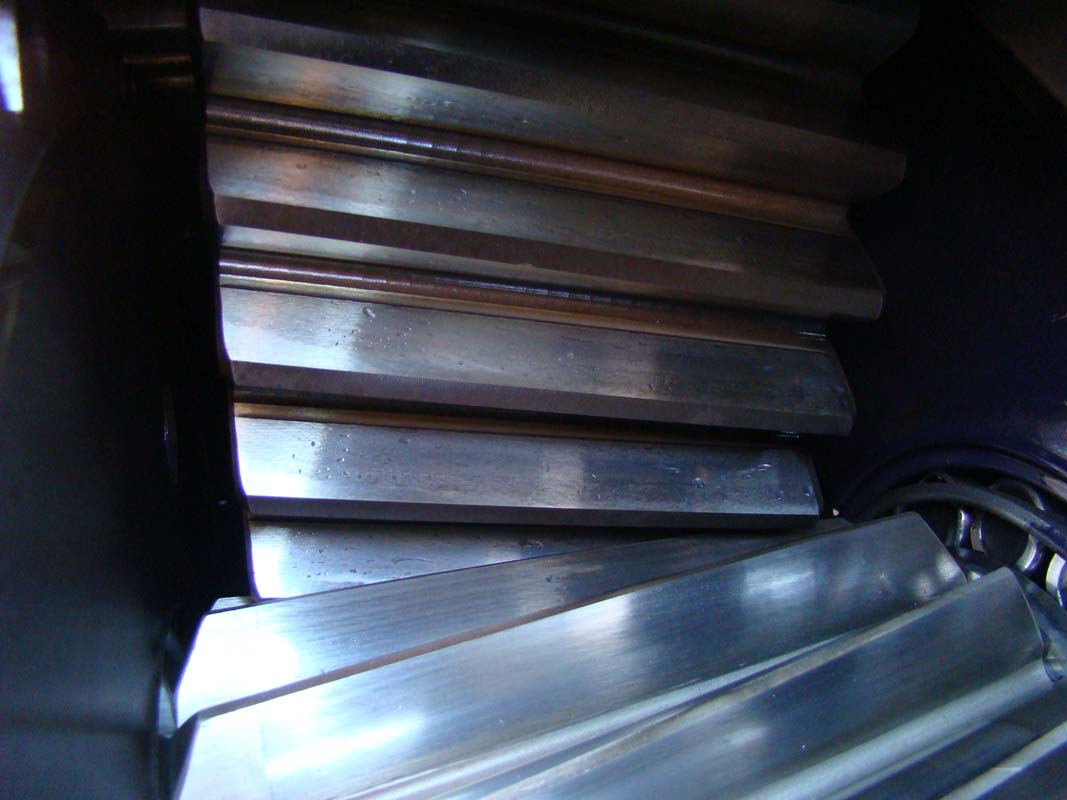

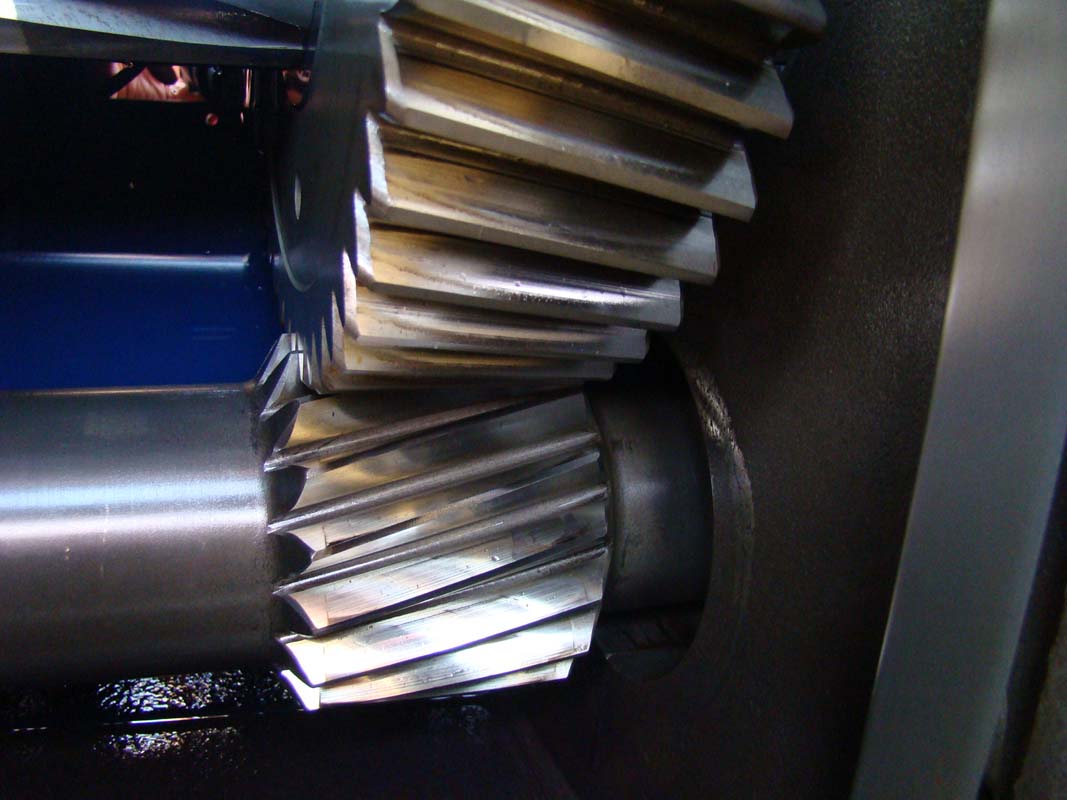

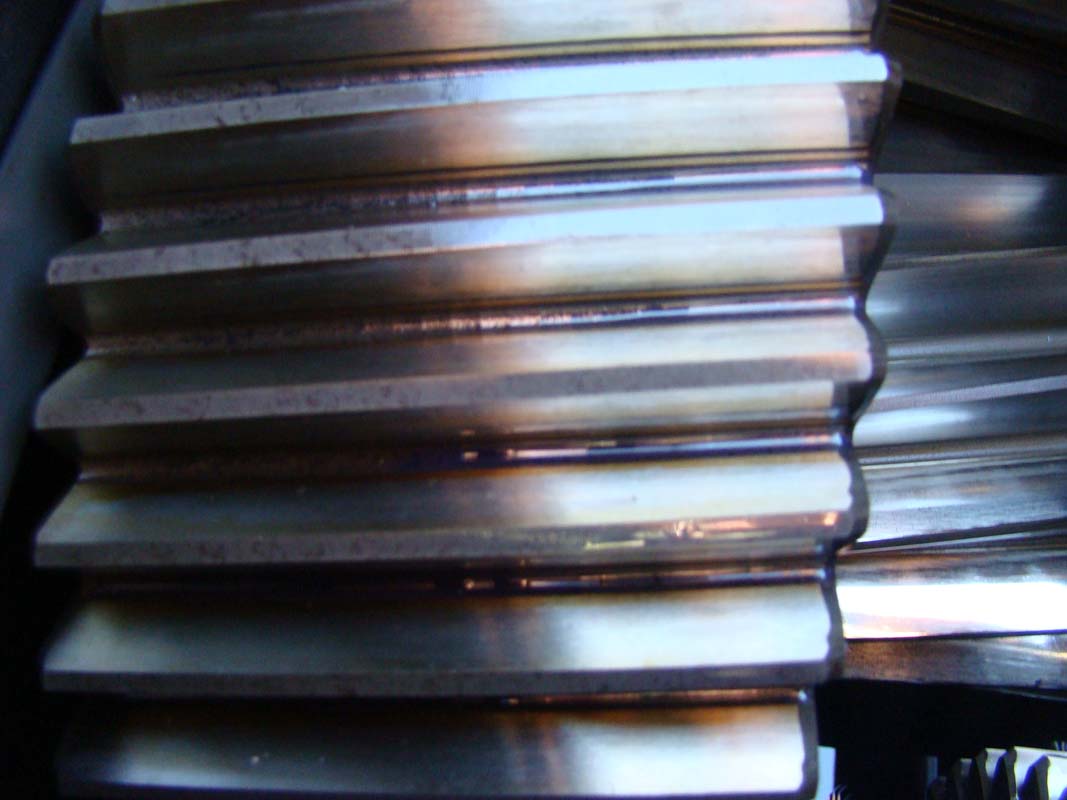

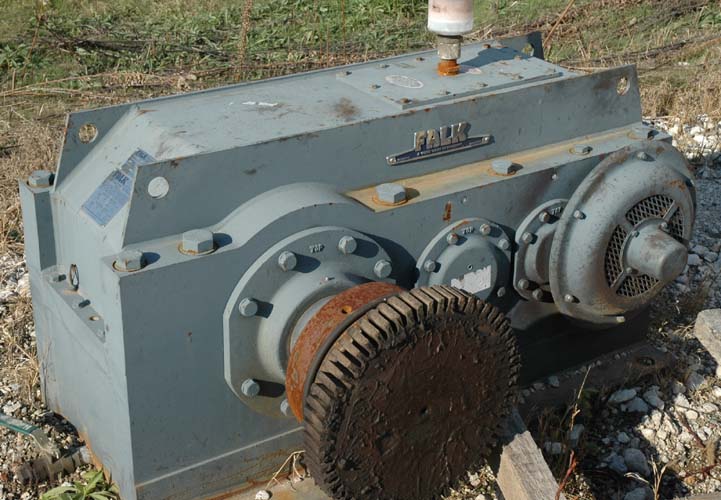

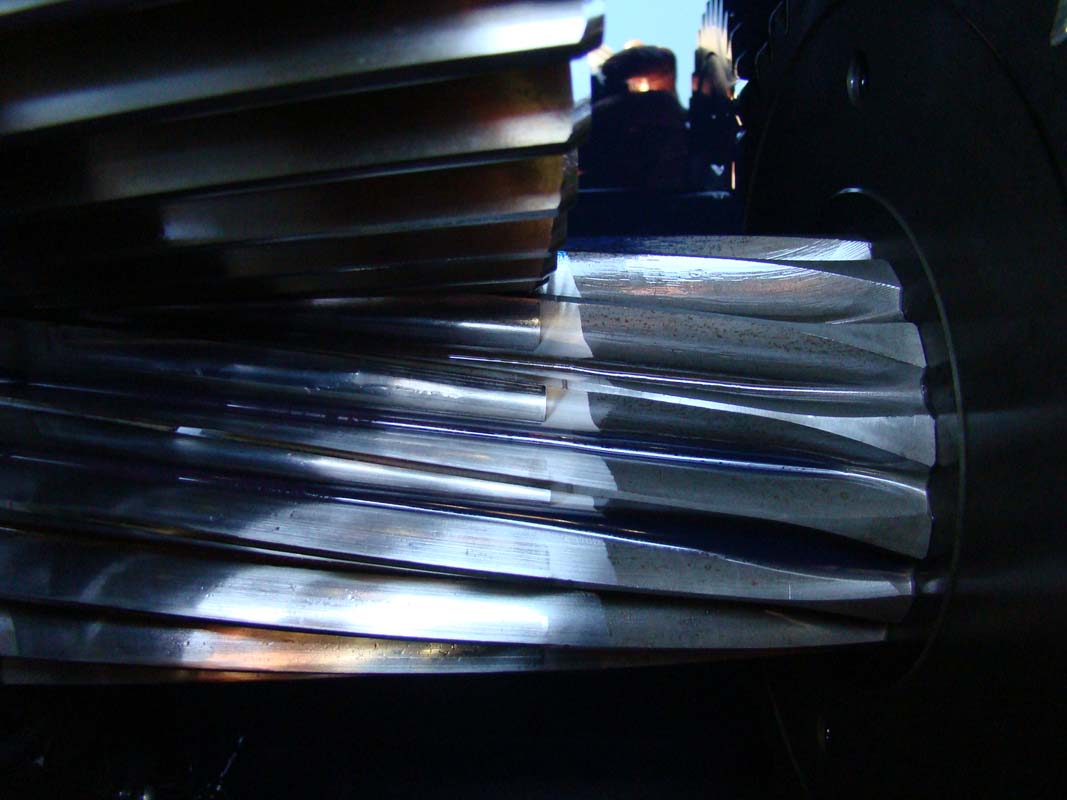

Click on images for larger view.
