Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

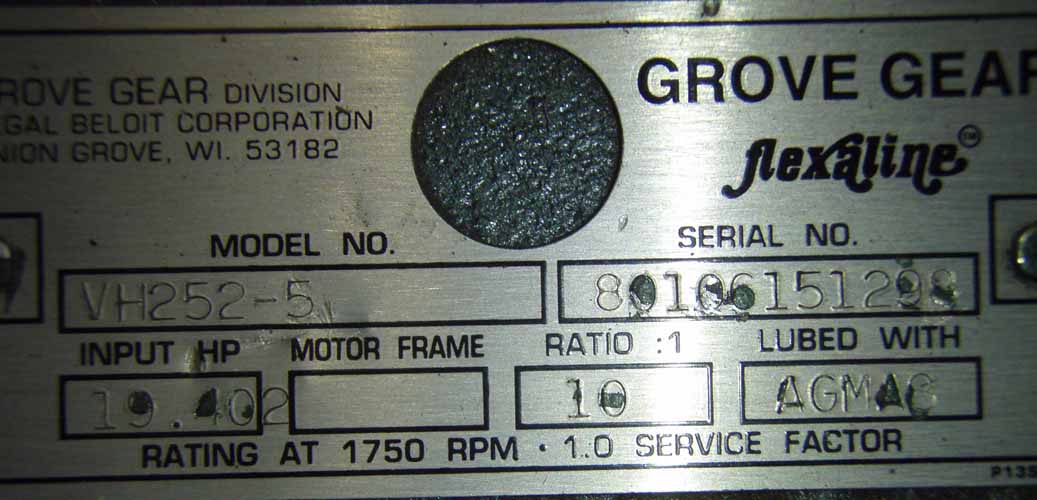

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     Flexaline SERIES Our ID No.       006693
Model No:      VH252-5 Ratio:      10
S/N      80106151298 Center Distance      5.25
IP Speed      1750 HP rating      19.402
OP Speed:       SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      6,508 Lb-Inches Shaft Diameters High Speed:  1.250
Low Speed:  2.000
Weight      300 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
10 :1

175 RPM
19.4 HP
1170 RPM
117 RPM
16.5 HP
870 RPM
87 RPM
14.5 HP
Notes:
   Used, good condition

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci


Click on images for larger view.
