SEW-EURODRIVE DATA SHEET

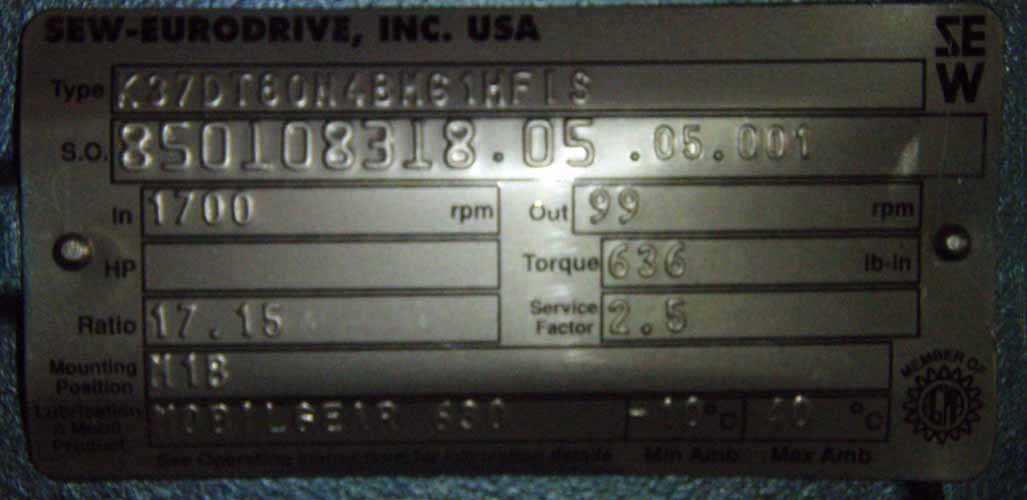

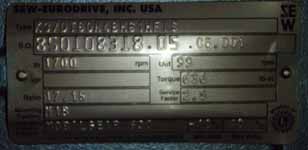

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      K37DT80N4BMG1HF1S Our ID No.      006704
SO#      850108318.05.05.001
Input RPM      1700 Output RPM      99
HP       Torque      636 lb-in
Ratio:      17.15 Service Factor      2.5
Mounting Pos      M1B

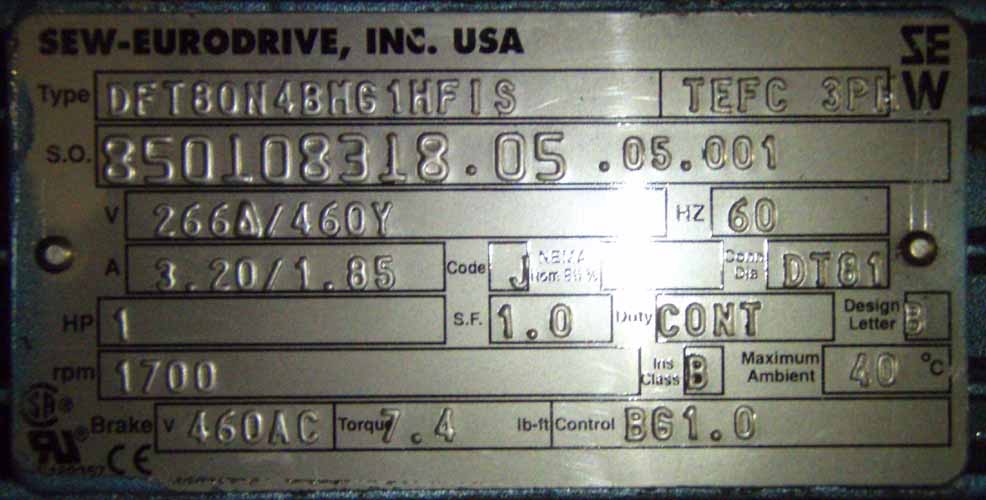

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFT80N4BMG1HF1S Enclosure:      TEFC 3PH
SO#      850108318.05.05.001
Volts      266/460 HZ      60
Amps      3.20/1.85 Code      J Nom Eff       Conn Dia.      DT81
HP      1 S.F.      1.0 Duty      CONT Design Letter      B
RPM      1700 Ins Class      B Max Amb      40C
Brake V      460AC Torque      7.4 lb-ft Control      BG1.0
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  1.000
Notes:
Condition:


NEW SURPLUS
