SEW-EURODRIVE DATA SHEET

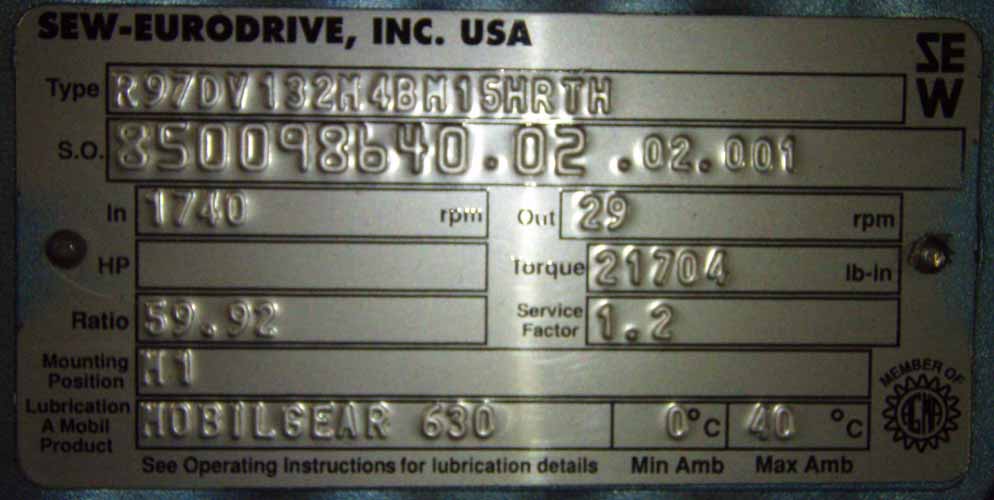

R E D U C E R       N A M E P L A T E       D A T A
TYPE:      R97DV132M4BM1SHRTH Our ID No.      006705
SO#      850098640.02.02.001
Input RPM      1740 Output RPM      29
HP      10 Torque      21,704 lb-in
Ratio:      59.92 Service Factor      1.2
Mounting Pos      M1

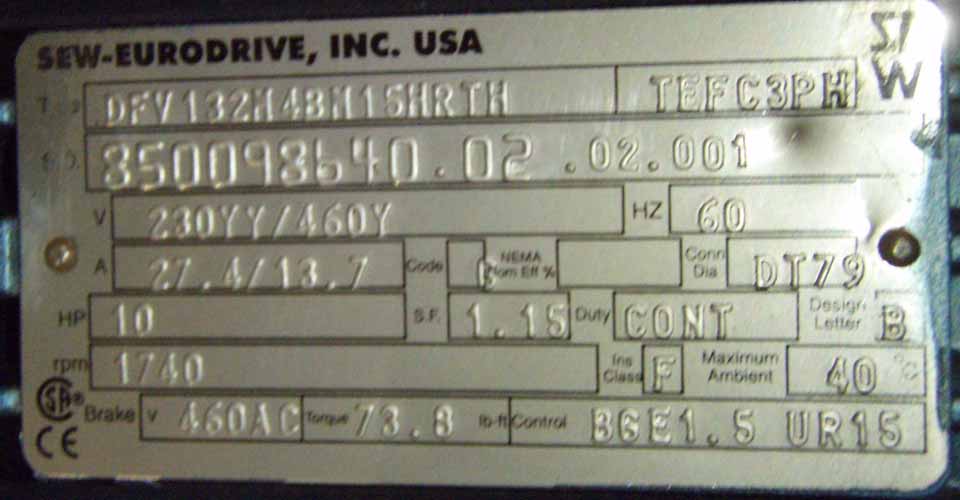

M O T O R       N A M E P L A T E       D A T A
TYPE:      DFV132M4BM15HRTH Enclosure:      TEFC
SO#      850098640.02.02.001
Volts      230 / 460 HZ      60
Amps      27.4 / 13.7 Code      B Nom Eff       Conn Dia.      DT79
HP      10 S.F.      1.15 Duty      CONT Design Letter      B
RPM      1740 Ins Class      F Max Amb      40
Brake V      460AC Torque      73.8 lb-ft Control      BGE1.5
A D D I T I O N A L      U N I T       I N F O R M A T I O N
Flange Diameter       Shaft Diameters High Speed:
Low Speed:  60mm (2.362)
Notes:
Condition:


New Surplus
