Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      Browning PowerMatch Our ID No.      006744
Model:      5011HP1 Ratio:      7.545
MO# or S/N      4452 Alt. S/N
IP Speed      445 HP rating      108 Cat. Rating
OP Speed:      59 SF / SC      1.0
Date      1/5/84 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      117,140 Lb-Inches Shaft Diameters High Speed:  2.750
Low Speed:  4.500
Weight      2,000 Lbs Approx. Assembly      27
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
7.545

230 RPM
629 HP
269 HP
1430 RPM
190 RPM
546 HP
321 HP
1170 RPM
155 RPM
471 HP
379 HP
870 RPM
115 RPM
350 HP
The thermal ratings exceed the mechanical.
720 RPM
95 RPM
289 HP
580 RPM
77 RPM
233 HP
Notes:
Condition:
Used, Excellent
Same dimensions as a Falk 2090Y1

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

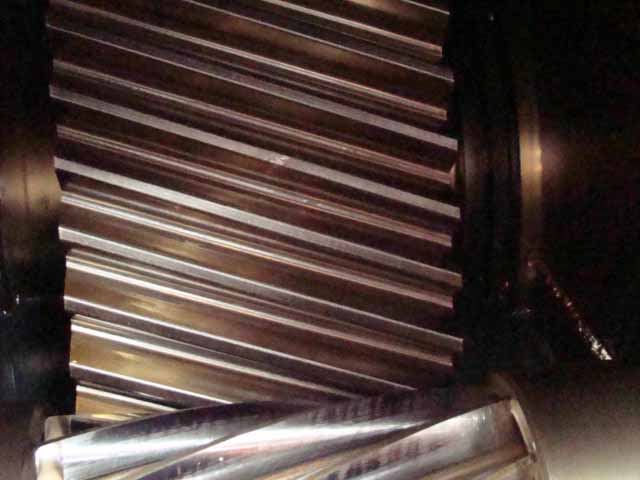

Click on images for larger view.
