Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N

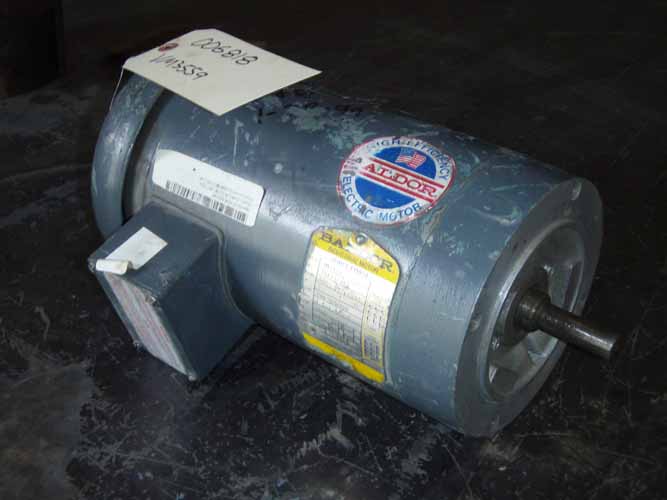

Manufacturer:      BALDOR AC / DC       AC KEM #      006818
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

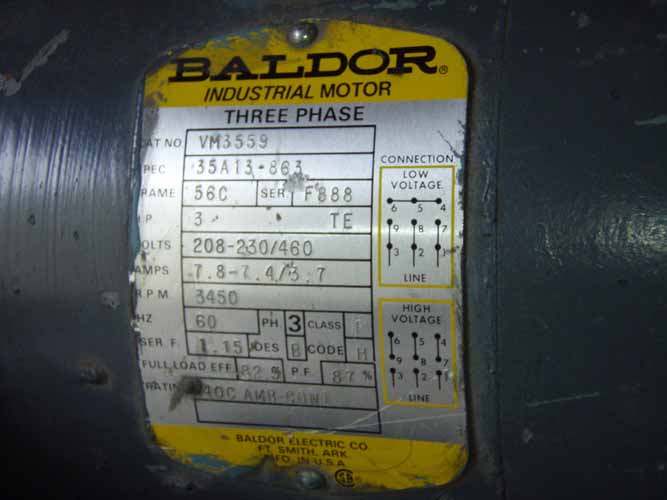

N A M E P L A T E      D A T A
 HP   3  RPM   3450  Frame   56C  Enclosure
 Volts   208-230/460  Amps  7.8-7.4/3.7  Cycles  60  Phase  3
 Type    NEMA Class Design   B  Code   H  Insulation Class
 Max Ambient    Service Factor   1.15  Duty   CONT.
 Model   VM3559  Serial Number  F888  Drive End Brg    Opp Dr End Brg

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
