Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N
Manufacturer:      LEESON AC / DC      AC KEM #      006826
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

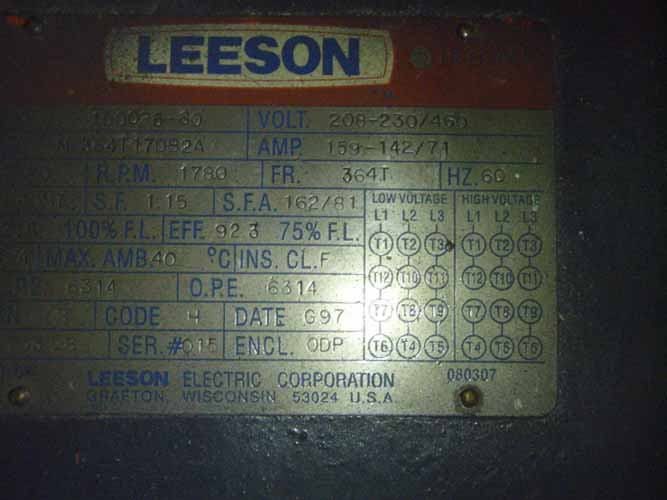

N A M E P L A T E      D A T A
 HP  60  RPM  1780  Frame  364T  Enclosure  ODP
 Volts  208-230 / 460  Amps  159-142 / 71  Cycles  60  Phase  3
 Type    NEMA Class Design  B  Code  H  Insulation Class   F
 Max Ambient    Service Factor   1.15  Duty
 Model    Serial Number    Drive End Brg  6314  Opp Dr End Brg  6314

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight   733 Lbs.
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
