Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -

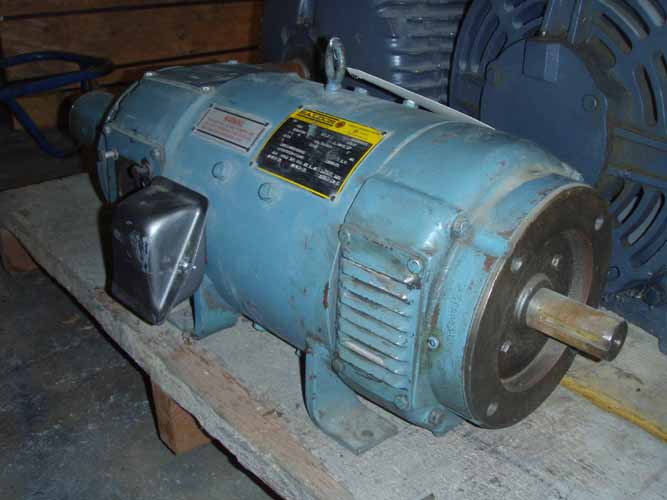

M O T O R     I N F O R M A T I O N
Manufacturer:      BALDOR AC / DC      DC KEM #      006827
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

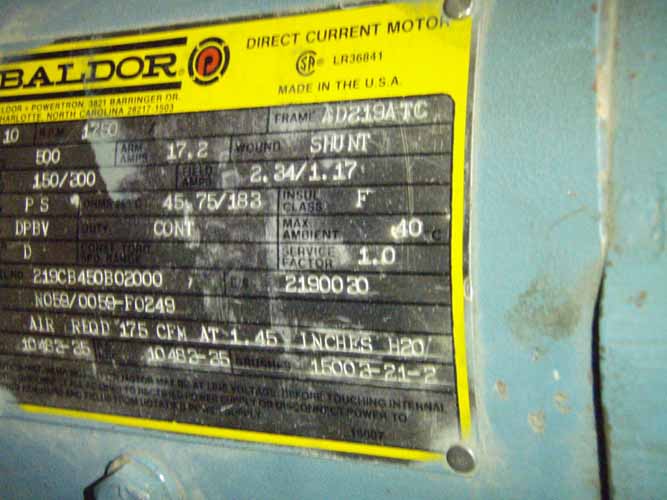

N A M E P L A T E      D A T A
 HP  10  RPM   1750  Frame  AD219ATC  Enclosure  DPBV
 Volts  500 ARM  Amps  17.2 ARM  Cycles    Phase
 Type    NEMA Class Design    Code   D  Insulation Class   F
 Max Ambient    Service Factor  1.0  Duty   CONT
 Model  219CB450B02000  Serial Number  N059/0059-F0249  Drive End Brg  10483-35  Opp Dr End Brg  10483-35

 Field Volts  150 / 300  Field Amp Max  2.34 / 1.17  Approx Rheo Resis    Ohms
 Winding   SHUNT  Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:


AIR REQD. 175 CFM @ 1.45 INCHES H20

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
