Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N

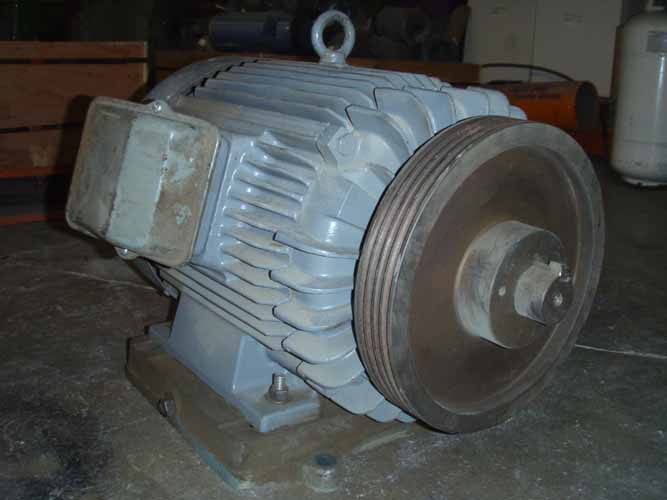

Manufacturer:      FUJI AC / DC      AC KEM #      006828
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

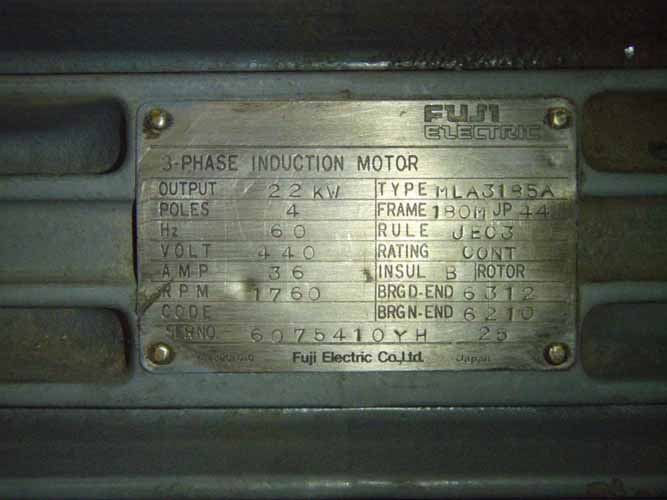

N A M E P L A T E      D A T A
 HP   30 (22KW)  RPM  1760  Frame  180MJP44  Enclosure
 Volts  440  Amps  36  Cycles  60  Phase  3
 Type   MLA3185A  NEMA Class Design    Code    Insulation Class   B
 Max Ambient    Service Factor    Duty   CONT
 Model    Serial Number  6075410YH 25  Drive End Brg  6312  Opp Dr End Brg   6310

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
