Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N

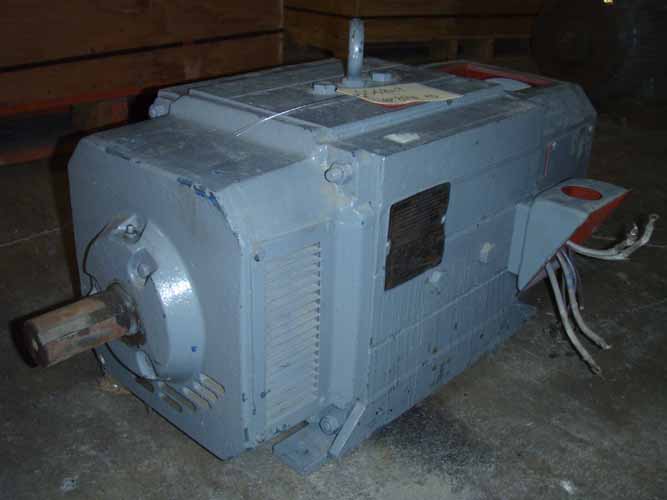

Manufacturer:      RELIANCE AC / DC      DC KEM #       006829
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

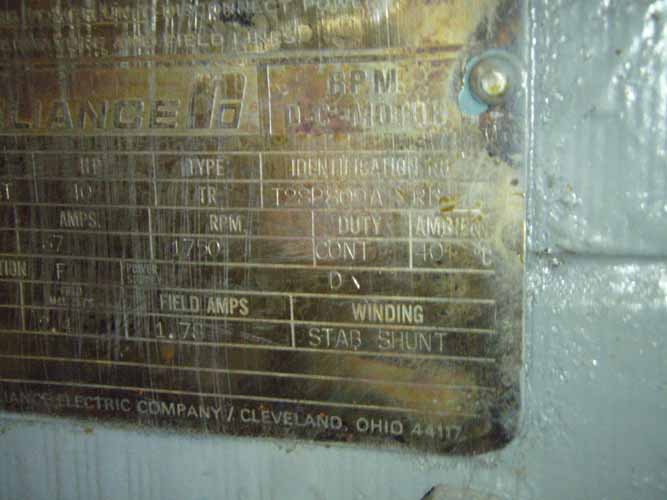

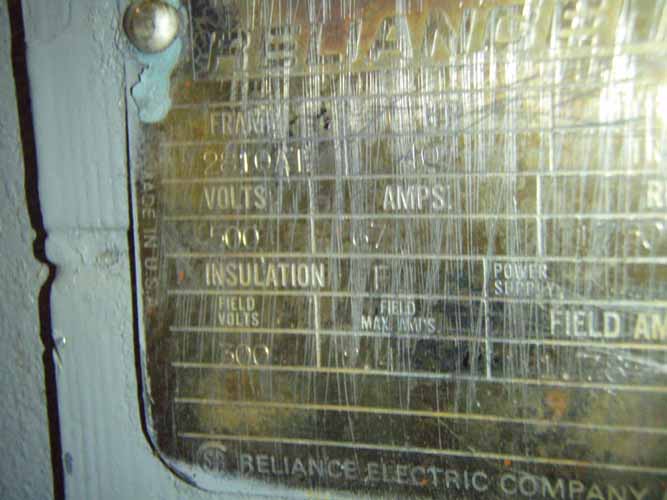

N A M E P L A T E      D A T A
 HP  40  RPM  1750  Frame  2810AT  Enclosure
 Volts  500 ARM.  Amps  67 ARM.  Cycles    Phase
 Type   TR  NEMA Class Design    Code    Insulation Class  F
 Max Ambient    Service Factor    Duty  CONT.
 Model   T28P809A RB  Serial Number    Drive End Brg    Opp Dr End Brg

 Field Volts  300  Field Amp Max  1.78  Approx Rheo Resis    Ohms
 Winding  STAB SHUNT  Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
