Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N
Manufacturer:      RELIANCE AC / DC      DC KEM #      006830
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical    Pump    Slip Ring

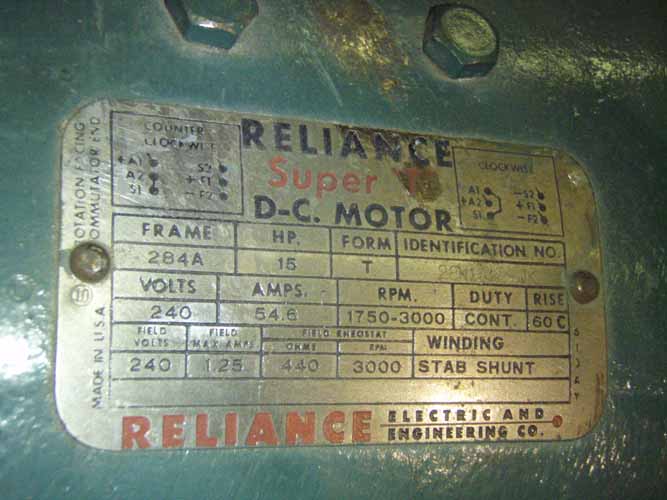

N A M E P L A T E      D A T A
 HP  15  RPM  1750 / 3000  Frame  284A  Enclosure
 Volts  240 ARM.  Amps  54.6 ARM.  Cycles    Phase
 Type    NEMA Class Design    Code    Insulation Class
 Max Ambient    Service Factor    Duty   CONT.
 Model  28N1A JK  Serial Number    Drive End Brg    Opp Dr End Brg

 Field Volts  240  Field Amp Max  1.25  Approx Rheo Resis    Ohms  440
 Winding  STAB SHUNT  Form   T
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition:

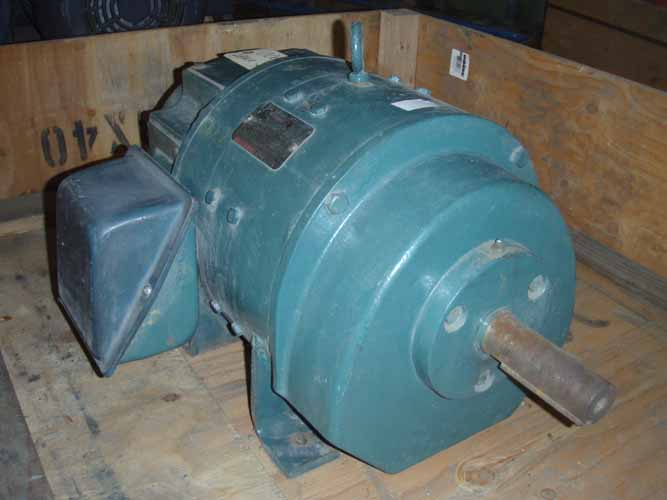

RELIANCE SUPER "T" DC MOTOR

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
