- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006850
Model:      505A1-AS Ratio:      4.000
MO# or S/N      8-966183 Alt. S/N
IP Speed      1185 HP rating      2500 Cat. Rating
OP Speed:      296.3 SF / SC      2.3 SF
Date      10/89 Oil Capacity      42
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      1,115,000 Lb-Inches Shaft Diameters High Speed:  6.500
Low Speed:  9.250
Weight      9,000 Lbs Approx. Assembly      ASSY 19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.000:1

438 RPM
7750 HP
1430 RPM
358 RPM
6700 HP
1170 RPM
293 RPM
5800 HP
870 RPM
218 RPM
4650 HP
720 RPM
180 RPM
3850 HP
580 RPM
145 RPM
3200 HP
Notes:
Condition:


USED

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

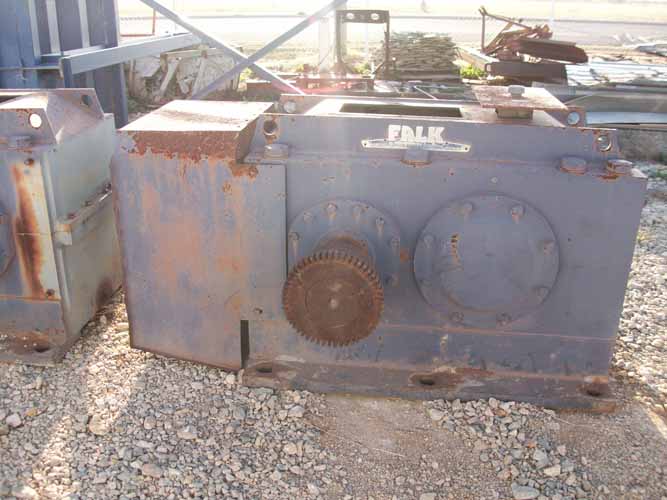

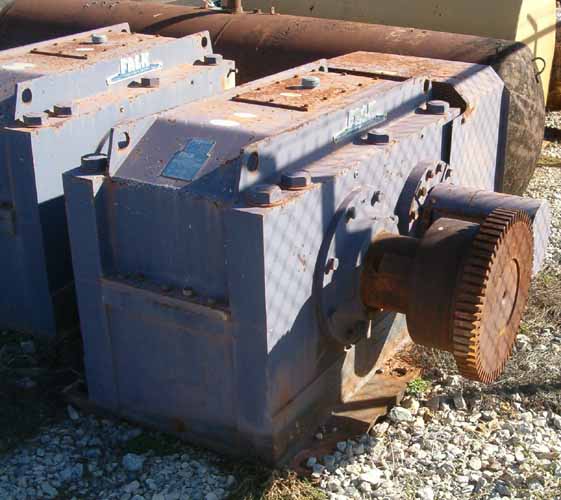

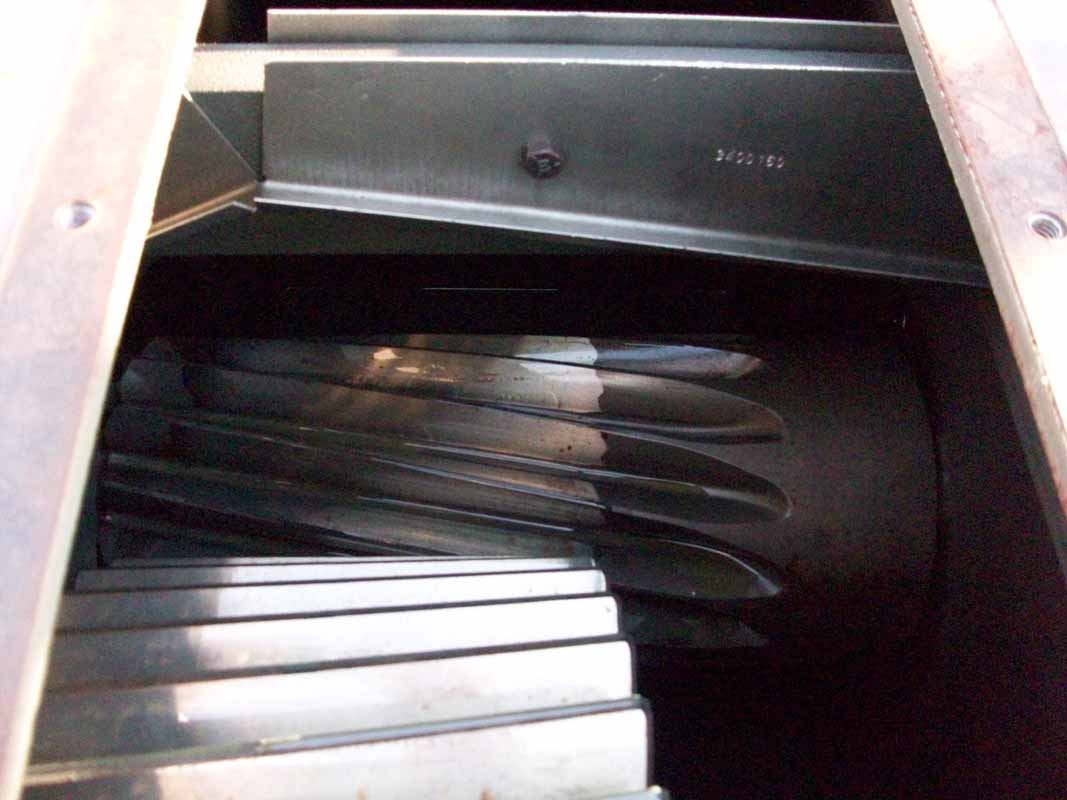

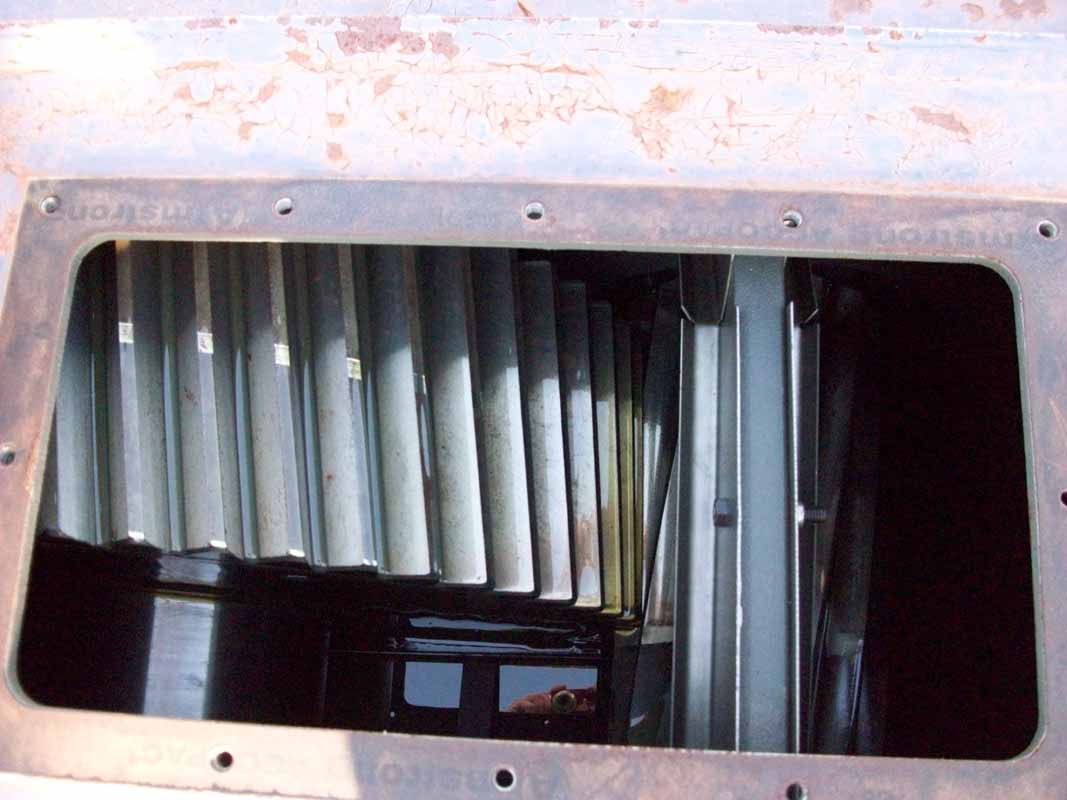

Click on images for larger view.
