Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -

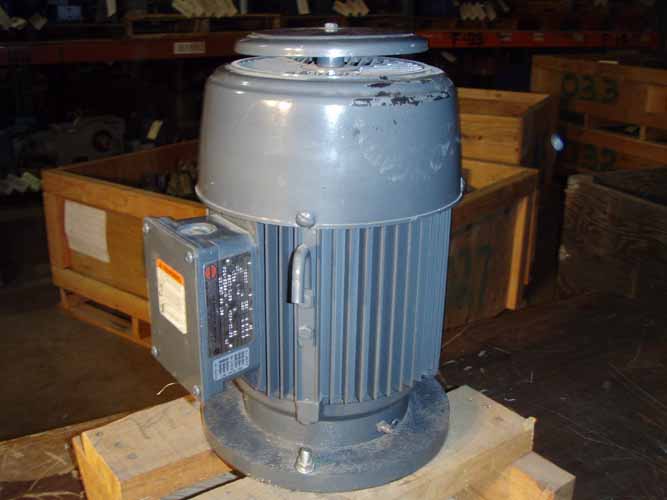

M O T O R     I N F O R M A T I O N
Manufacturer:       US MOTORS AC / DC       AC KEM #      006856
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical   X  Pump    Slip Ring
N A M E P L A T E      D A T A
 HP  3  RPM  1735  Frame   182VP  Enclosure  WPI
 Volts   230 / 460  Amps  9.9 / 4.9  Cycles   60  Phase   3
 Type   AV  NEMA Class Design   B  Code   K  Insulation Class   F
 Max Ambient    Service Factor   1.15  Duty   CONT
 Model    Serial Number   FO4-8266-M  Drive End Brg   6307-ZJC3  Opp Dr End Brg   6205-2ZJC3

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight   66 Lbs.
Notes:
Condition: NEW SURPLUS
