Klistoff Equipment & Machinery, Inc.
- Electric Motor Data Sheet -
M O T O R     I N F O R M A T I O N
Manufacturer:      US MOTORS AC / DC       AC KEM #       006857
 Squirrel Cage    Variable Speed    Brake Motor    Mill Motor
 2 Speed/Multi Speed    Design D    Synchronous
 Vertical   X  Pump    Slip Ring
N A M E P L A T E      D A T A
 HP  5  RPM   1740  Frame  184VP  Enclosure  TE
 Volts   230 / 460  Amps   13.6 / 6.8  Cycles   60  Phase   3
 Type   TV  NEMA Class Design  B  Code   H  Insulation Class   F
 Max Ambient    Service Factor   1.0  Duty   CONT
 Model   6586A  Serial Number   NT5S2BE  Drive End Brg  6307-Z-J/C3  Opp Dr End Brg   6205-2Z-J/C3

 Field Volts    Field Amp Max    Approx Rheo Resis    Ohms
 Winding    Form
 Connect Diagram    Maint & Instl Instr    Lubrication
 D =    U =    V =
 2E =    2F =    Weight
Notes:
Condition: NEW SURPLUS



Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

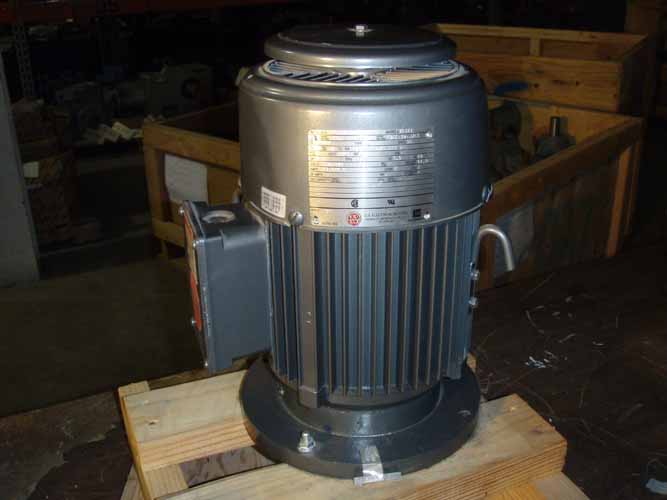

Click on images for larger view.
