- Speed Reducer Data Sheet -
HOME

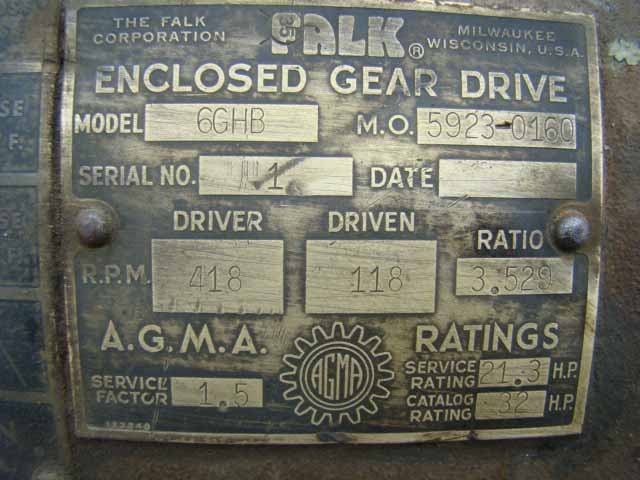

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      006866
Model:      6GHB Ratio:      3.529
MO# or S/N      5923-0160-1 Alt. S/N
IP Speed      418 HP rating      21.3 Cat. Rating      32
OP Speed:      118 SF / SC      1.5 SF
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      15,400 Lb-Inches Shaft Diameters High Speed:  2.125
Low Speed:  2.500
Weight      700 Lbs Approx. Assembly      ASSY 2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1170 RPM
3.529

331 RPM
81 HP
870 RPM
246 RPM
63 HP
720 RPM
204 RPM
55 HP
580 RPM
164 RPM
44 HP
Notes:
Condition:


Used
