Notes:
|
Condition:
Used

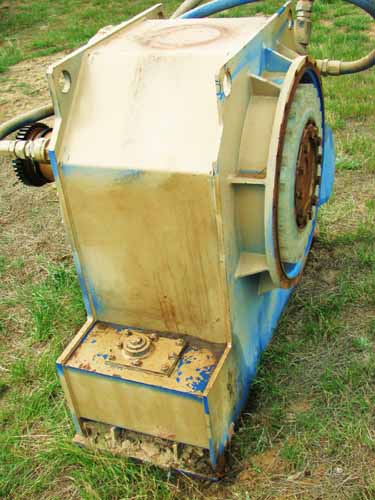

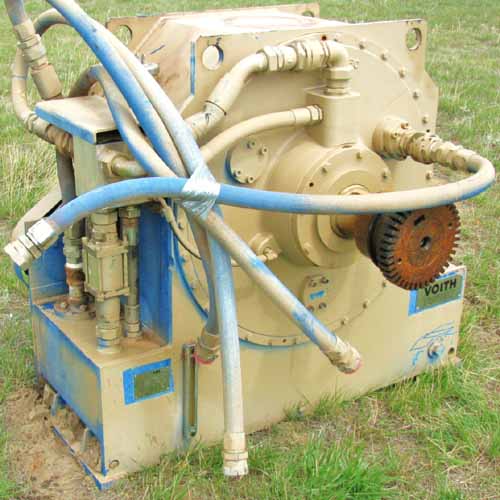

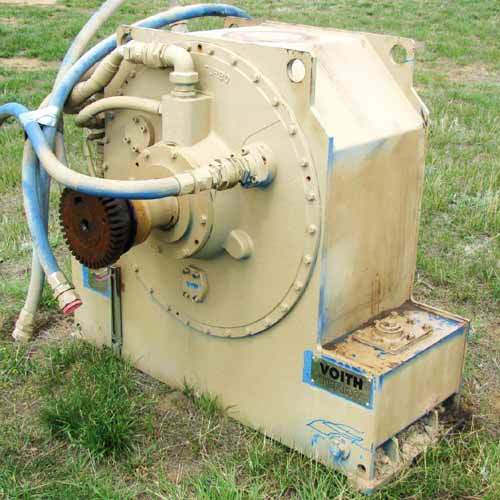

Voith Fluid Coupling

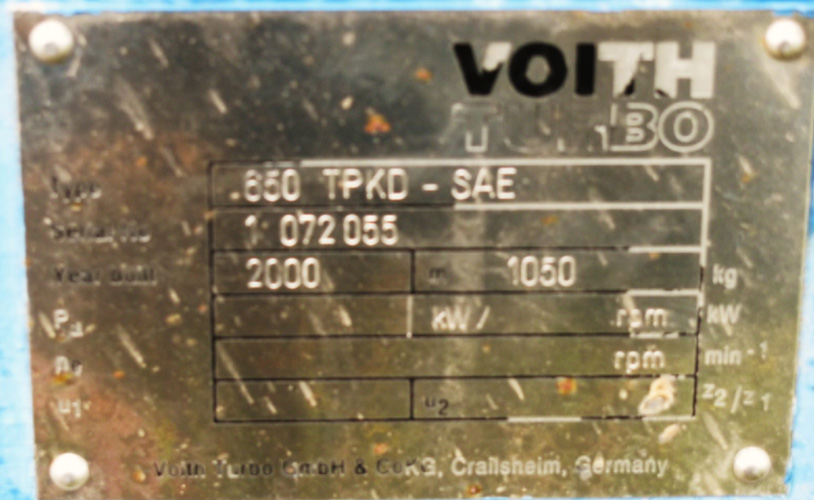

type: 650 TPKD-SAE

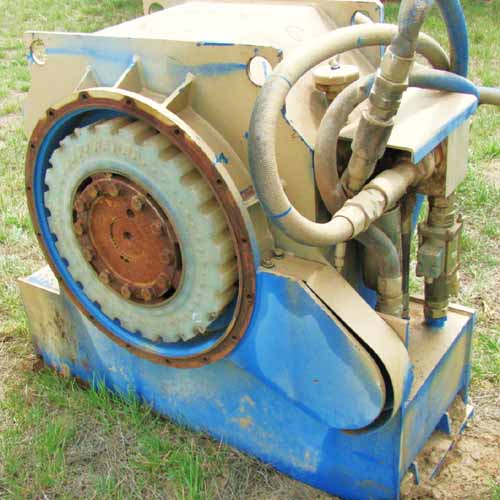

Unit has the Centimax 8,000 coupling on the input side for use with the CAT 3412 or 3512.
Unit can easily be changed to the Centimax 10,000 for use with Detroit Diesel. The output has the SAE spec output shaft approximately ten inches long and about 4.75 inches diameter and presently has a Falk Steelflex hub on it.
This unit is the same as the Voith TPK units for electric motor drive input with the addition of the input coupling, and can be used for heavy industrial and conveyor applications also.
It is designed for 800 to 1,800 HP. Input at max 2,100 RPM and achieves 97-98% efficiency at full rpm.
This particular unit is used in many field applications including, crushing, tub grinding, oil field and mining.
650TPKDSAE
650 TPKD SAE
|
