Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -

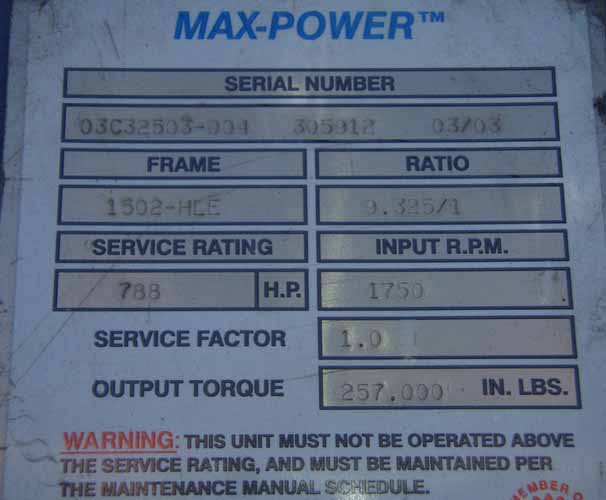

N A M E P L A T E       D A T A
Manufacturer:      FOOTE-JONES Our ID No.      006935
Model:      1502HLE Ratio:      9.325
MO# or S/N      03C32503-004 305912 Alt. S/N
IP Speed      1750 HP rating      788 Cat. Rating
OP Speed:       SF / SC      1.0 SF
Date      03/03 Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      257,000 Lb-Inches Shaft Diameters High Speed:  3.000
Low Speed:  6.500
Weight      4,500 Lbs Approx. Assembly      Assembly 2
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal
Ratings
W/O Cooling
1750 RPM
9.300

188 RPM
788 HP
160 HP
1170 RPM
125 RPM
563 HP
313 HP
870 RPM
94 RPM
313 HP
313 HP
580 RPM
62 RPM
300 HP
313 HP
Notes:
Condition:
NEW SURPLUS


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci



Click on images for larger view.
