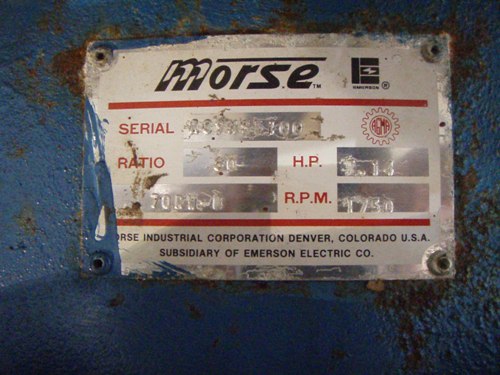

N A M E P L A T E       D A T A
Manufacturer:      MORSE Our ID No.      007181
Model:      70RW-B Ratio:      60:1
MO# or S/N      A89MS5100 Alt. S/N
IP Speed      1750 HP rating      7.14 Cat. Rating
OP Speed:       SF / SC
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      11,930 Lb-Inches Shaft Diameters High Speed:  1.750   Solid
Low Speed:  2.750   Solid
Weight      523 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM

29.2 RPM
7.17 HP
1430 RPM
1170 RPM
19.2 RPM
6.14 HP
870 RPM
14.5 RPM
5.66 HP
720 RPM
580 RPM
9.7 RPM
4.82 HP
Notes:
Condition: USED
