- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      Amarillo Our ID No.      007191
Model:      1712 Ratio:      13:1
MO# or S/N      263749 Alt. S/N
IP Speed      1750 HP rating      241 Cat. Rating
OP Speed:       SF / SC
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       Lb-Inches Shaft Diameters High Speed:  2.4375
Low Speed:  5.0000
Weight      2,250 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
13:1

135 RPM
200 HP
1430 RPM
110 RPM
200 HP
1170 RPM
90 RPM
160 HP
Notes:
Condition:
Unused

Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

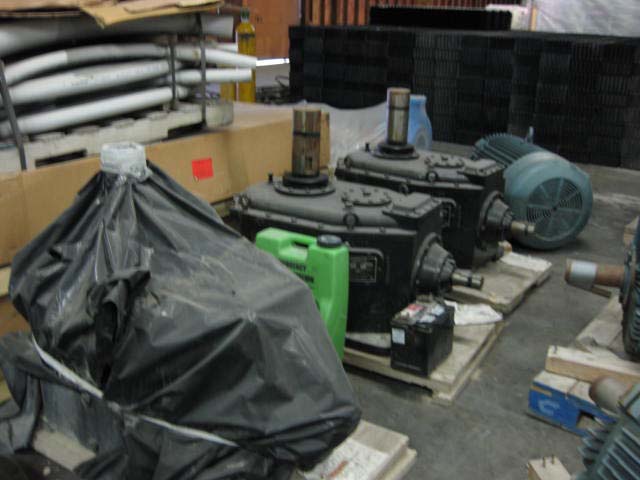

Click on images for larger view.
